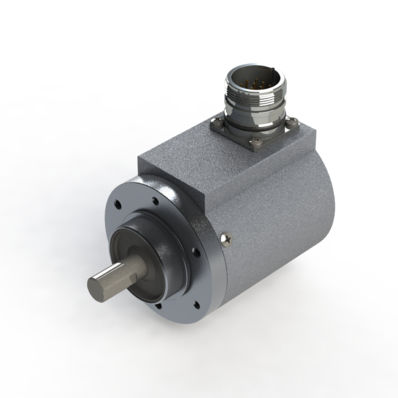

Absolute rotary encoder SS-SSM seriesmechanical10-bit16-bit
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- mechanical
- Absolute encoder resolution
- 10-bit, 16-bit, 12-bit, 14-bit, 24-bit, 18-bit, 8-bit, 20-bit, 29-bit, 22-bit, 32-bit, 28-bit
- Construction
- single-turn, multi-turn
- Output signal
- with SSI interface
- Supply voltage
- 15VDC, 24 Vdc, 12 Vdc
- Material
- aluminum, stainless steel
- Protection level
- IP67
- Applications
- industrial
- Other characteristics
- compact
- Housing diameter
58 mm
(2.28 in)- Shaft diameter
Max.: 10 mm
(0.39 in)Min.: 6 mm
(0.24 in)- Rotational speed
6,000 rpm
(37,699 rad.min-1)- Process temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
Absolute multiturn rotary-encoder with SSI interface and SIN/COS output
Solid shaft diameter of 6 or 10mm
Housing diameter 58mm, compact design and high protection of degree up to IP67
Maximum resolution 33 Bit
For highest industrial requirements
Also available in stainless steel for aggressive environmental conditions
