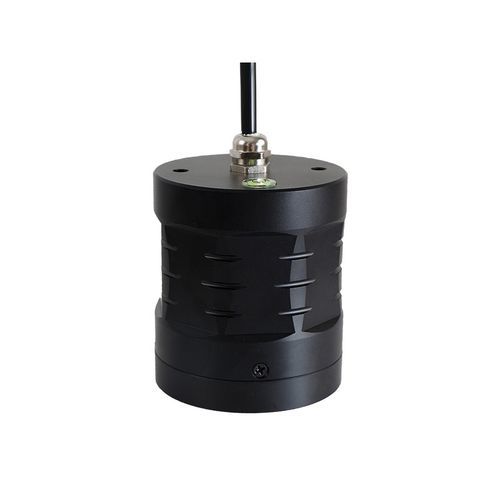

HR1200 is a 60GHz millimeter wave radar level sensor. By adopting non-contact measurement, it is clean without much maintenance concern and is quite easy to install thanks to the bubble spirit level design. It features strong anti-interference ability and high accuracy, up to ±2mm and can detect small targets.
Application:
●Water treatment
●Refining process vessels
●Hydroelectric power generation & dams
Advantages
01
Compact size and easy installation
02
Non-contact measurement adopted, without cleaning difficulty
03
Receiving little impact by corrosion, foam, vapor,temperature & pressure changes
04
Standard RS485 MODBUS protocol supported
05
Connection of host computer setting software, tankside meter and others
06
Wide power supply range with minimized power consumption
Technical Data
Measurement accuracy
±2mm
FOV angle
8°
Center frequency
60GHz
Communication rate
Default 115200bit/s, 9600/19200/38400 free change
Communication Mode
RS485 MODBUS RTU
Power Supply
12Vdc recommended (9-24Vdc available)
Power consumption
Minimum power:0.2W(8V*16.847mA)
Maximum power:0.45W(12*36.168mA)
