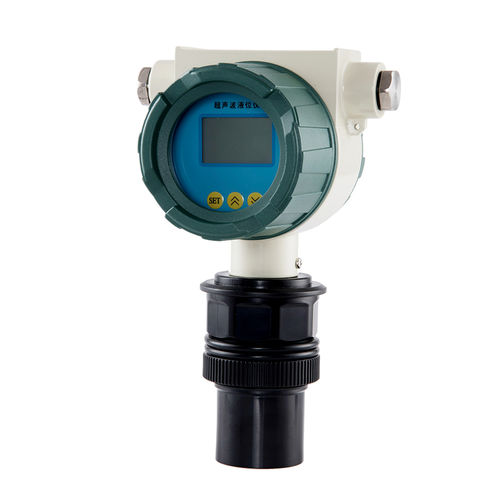

Ultrasonic level sensor UE2000
for fuel2-wiredigital output

ultrasonic level sensor
ultrasonic level sensor
ultrasonic level sensor
ultrasonic level sensor
ultrasonic level sensor
ultrasonic level sensor
ultrasonic level sensor
Add to favorites
Compare this product


Characteristics

Technology
ultrasonic
Medium
for fuel
Interface
4-20 mA, 2-wire, digital output
Applications
for storage tanks, for the food industry
Other characteristics
high-precision, explosion-proof, IP68, IP66
Level range

Min.: 0 m
(0'00" )

Max.: 60 m
(196'10" )

Process pressure

2 bar
(29.01 psi)

Process temperature

Min.: -20 °C
(-4 °F)

Max.: 80 °C
(176 °F)

Description

Ultrasonic fuel level sensor is specially designed for fuel and flammable liquid level measurement. It has a built-in LCD display for field calibration. Application : ● Ultrasonic fuel level measurement ● Non contact oil level measurement ● Diesel level monitoring ● Food grade level measure ● Butter storage tank level measurement Advantages 01 Non contact fuel level measuring instrument 02 Built-in temperature sensor measures and displays temperature simultaneously 03 Intergrative type easy installation with higher explosion proof 04 High accuracy 0.25%FS, long measure range 50m maximum 05 Using ATMEL computing chip, data processing speed is more than twice that of other sensors
