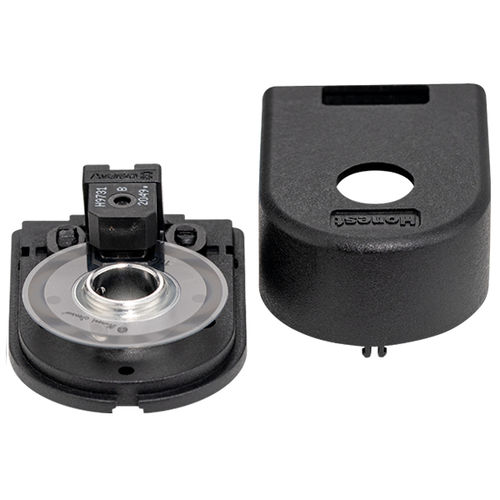

Incremental rotary encoder HS301opticalhollow-shaftvoltage output
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- optical
- Construction
- hollow-shaft
- Output signal
- voltage output
- Supply voltage
- 5VDC
- Material
- plastic
- Applications
- industrial, for motors, for robotics
- Other characteristics
- compact, high-accuracy, miniature
- Housing diameter
Max.: 30 mm
(1.18 in)Min.: 30 mm
(1.18 in)- Shaft diameter
Max.: 8 mm
(0.31 in)Min.: 3 mm
(0.12 in)- Rotational speed
Max.: 12,500 rpm
(78,540 rad.min-1)Min.: 1,200 rpm
(7,540 rad.min-1)- Process temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
Features
‧Two Channel Quadrature Output
‧Easy Mounting
‧Low Cost
‧Compact Size
‧TL Compatible
‧Single 5V DC Supply
Catalogs
HS301 Datasheet
2 Pages
