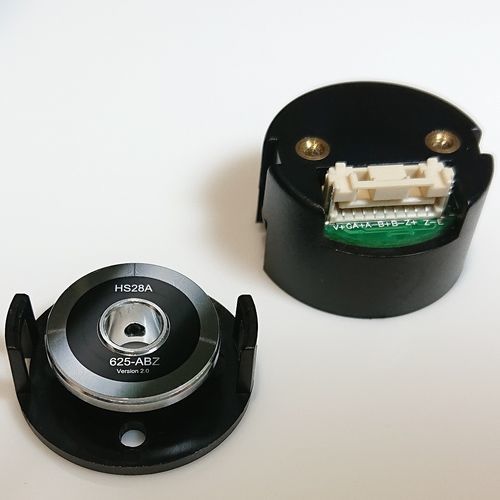

Incremental rotary encoder HS28Copticalhollow-shaftdigital
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- optical
- Construction
- hollow-shaft
- Output signal
- digital
- Supply voltage
- 5VDC
- Material
- plastic
- Protection level
- IP40
- Applications
- industrial, for motors, for robotics
- Other characteristics
- compact, high-resolution, high-accuracy, miniature
- Incremental encoder résolution (pulses per revolution
Max.: 4,096 unit
Min.: 200 unit
- Housing diameter
Max.: 28 mm
(1.1 in)Min.: 28 mm
(1.1 in)- Shaft diameter
Max.: 8 mm
(0.31 in)Min.: 4 mm
(0.16 in)- Rotational speed
Max.: 25,000 rpm
(157,080 rad.min-1)- Process temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
Features
‧Two Channel Quadrature Output with Index Pulse
‧Wide Temperature range: -40 ~ +100℃
‧User friendly & Easy Mounting
‧Low Cost
‧TL Compatible
‧Single 5V DC Supply
-
Resolution
‧200-4096 P/R
Max RPM for the Encoder
‧ 27099 RPM for 4096 P/R
Catalogs
HS28C Datasheet
4 Pages
