- Detection - Measurement
- Position, Speed and Acceleration Measurements
- Incremental rotary encoder
- HONEST SENSOR Corp. Taiwan

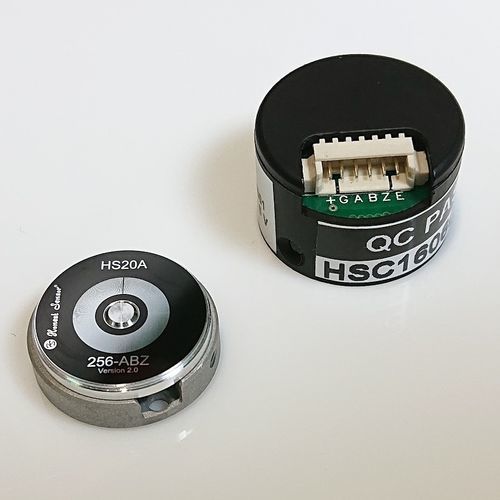

Incremental rotary encoder HS20Aopticalhollow-shaftdigital
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- optical
- Construction
- hollow-shaft
- Output signal
- digital, voltage output, Line Driver
- Supply voltage
- 5VDC
- Material
- plastic
- Protection level
- IP40
- Applications
- industrial, for motors, for robotics
- Other characteristics
- compact, high-resolution, high-accuracy, miniature
- Incremental encoder résolution (pulses per revolution
Max.: 8,192 unit
Min.: 200 unit
- Housing diameter
Max.: 20 mm
(0.79 in)Min.: 20 mm
(0.79 in)- Shaft diameter
Max.: 4 mm
(0.16 in)Min.: 2 mm
(0.08 in)- Rotational speed
Max.: 66,000 rpm
(414,690 rad.min-1)Min.: 10,986 rpm
(69,027 rad.min-1)- Process temperature
Max.: 85 °C
(185 °F)Min.: -20 °C
(-4 °F)
Description
Application
Encoder modules
‧Stepping Motor
‧Automated Equipment
‧Robot arm
Feature
‧Low cost
‧Miniature Size
‧Easy Mounting
Resolution
200, 250, 256, 300, 360, 400, 500, 512, 600, 720, 800, 1000, 1024, 1200, 1440, 1600,
2000, 2048, 8192 P/R
Catalogs
HS20A Datasheet
5 Pages
