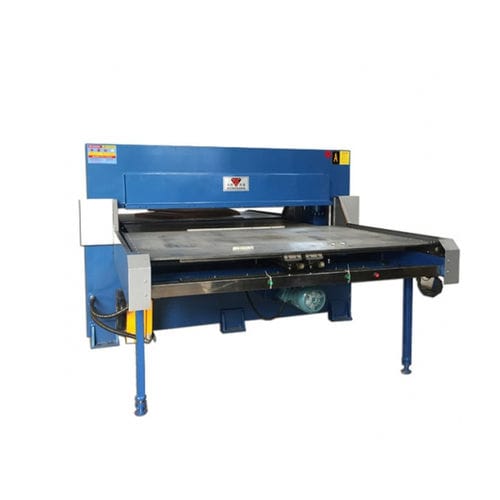

Hydraulic press HG-B200T

cuttingPLC-controlledautomatic

200Tons Automatic Die Clicker Press 200tons automatic die clicker press This is a customized machine for our German customers. It lengthens the length of the cutting area. Clicker press force: 200tons Clicker press area: 2100*1300mm 1. The working principle of the automatic die clicker press is down press to the mould, and it to cut material by dies / moulds. 2. Used for die clicker press disposable plastic blister or foam packaging,EPE foam packaging.automotive /plane interiors etc. 3. Applicable to all non-metallic materials, irregular shape of the cutting. Feature: 1.Controlled by PLC(Programmable Logic Controller), with touching screen, to set and micro-adjust working pressure, cutting depth, feeding speed easier, faster and more precise. 2.Double automatic die clicker press working tables, increases the output twice or triple. 3.Auto-balance structure of double-cylinder, four-column and self-balance connecting rod, makes sure equal pressure in any working area. 4.Powered by hydraulic system, slow down when the clicker press die touches material, to confirm the precision between upper and bottom for thick materials. 5.Central automatic lubrication system, increases machine durability, prolong the working time.
