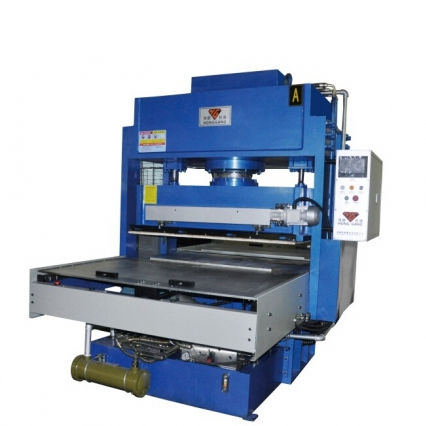

Die cutting machine HG-V120T
sheettrimmingforming

die cutting machine
die cutting machine
die cutting machine
Add to favorites
Compare this product


Characteristics

Technology
die
Product handled
sheet
Associated function
trimming, forming
Phase
three-phase
Configuration
table type
Other characteristics
vertical, hydraulic, rotary

Description

Vertical Double-side Hydraulic Die Cutting Press The vertical hydraulic cutting machine is cylinder top type auto balance cutting machine. It's designed with large cutting force of 120 tons, 150 tons, 180 tons, with large cutting area of 910x1400mm, which is mainly used for blister cutting, food packaging containers, industrials packaging materials such as PP, PVC,HIPS, OPS, PET, ABS,PSP etc. forming products. Features: 1.Large cutting force and area by special cylinder with long working life. 2.Precise pressure setting, less error performance, to protect the cutting die and machine life. 3.Professional welding to keep the machine quality. 4.PLC control system, to control 50 modules of cutting depth, feeding rate,cutting die setting. Others cutting die cutting force cutting area table feeding type one side or two sides feeding table Specifications Cutting force - 120T,150T,200T Cutting area - 810x1400mm, 810x1600mm Working tables - double table Feeding table type - Rotary feeding Motor - 11kw Stroke - 50-250mm Voltage - 3 phase 220/380/415/440V 50/60HZ Dimension - 3120x1980x2360mm Net weight - 5500kg, 6500kg,7500kg To cut geniune leather, nesting several cutting dies together in one sheet hide to cut. To cut Plastic products by trimming to die cut the plastic sheet.
