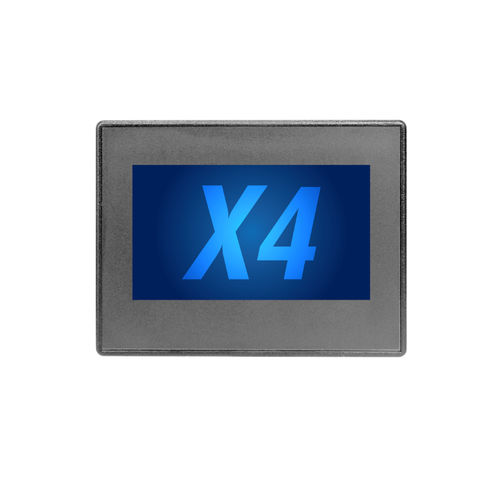

Compact PLC X4

on-boardmicroDIN rail

The X4 is the third product of the streamlined Micro OCS Series of embedded I/O controllers. All units feature a built-in logic engine, operator interface, networking and I/O. -Virtual function keys slide in from the right on command -Designed with a streamlined set of onboard I/O -Capable processor speed and larger, intuitive user interface -Support for 4-20mA signals and RTD temperature sensors -USB mini-B onboard -High capacity microSD slot -RS232/RS485 serial port -CAN port (via RJ45) -Ethernet LAN port -Available in 2 models, model R and model A MINIMAL PHYSICAL DESIGN The small, sleek profile of the X4 enables you to fit more in your panel, saving space and resources. The X4 packs a big picture into an overall small package. With just a 4.6” x 3.5” cutout, this 4.3” wide aspect screen is very friendly, intuitive, and clear. COMPREHENSIVE I/O CONFIGURATION In an effort to make implementing Horner OCS controllers as seamless and user-friendly as possible, we have selected a streamlined set of on-board I/O. The wide scope of digital and analog I/O make automating your applications, and your organization, as simple as the push of a (virtual) button. If the built-in I/O of the X4 isn’t enough for your specific application, you can easily expand via Ethernet, CAN, or serial. FLEXIBILITY In the market of fixed I/O, web-compatible controllers, the X4 is unmatched. Suited for most applications across a diverse range of industries, the X4 exceeds standards (and expectations). With powerful processor speeds, an intuitive user interface, and rugged durability
