for inert gases, for compressed air, for gas, for oxygen, heated gas, for nitrogen, propane, for CO2, for sour gas, for hydrogen, for acetylene, for natural gas, for CNG
Technology
diaphragm
Number of stages
two-stage
Material
brass
Applications
industrial, precision, for medical applications, for analytical instruments, high-purity, cylinder, for chromatography, laboratory
Other characteristics
with pressure gauge, high-precision, high-purity
Pressure
Max.: 300 bar (4,351.13 psi)
Min.: 0 bar (0 psi)
Orifice diameter
0.25 in
Temperature
Max.: 70 °C (158 °F)
Min.: -20 °C (-4 °F)
Description

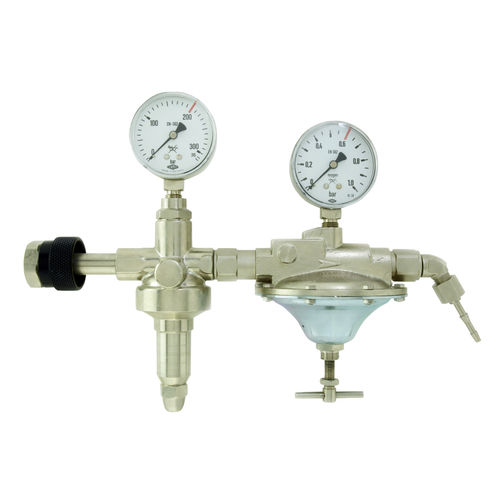

Dual stage precision regulator with a large diaphragm for mbar applications integrated into the second stage (FHR).
For non corrosive gases up to 5.0 purity.
Especially for mbar applications:
· Science and research
· Glass- and lamp industries
· Process enginiering.
