for gas, for compressed air, for inert gases, for oxygen, for nitrogen, propane, for CO2, for hydrogen, for acetylene, for sour gas, for natural gas, heated gas, for CNG
Technology
diaphragm
Number of stages
single-stage
Material
brass
Applications
cylinder
Other characteristics
with pressure gauge
Pressure
Max.: 300 bar (4,351.13 psi)
Min.: 0 bar (0 psi)
Flow
Max.: 45 m³/h (1,589.16 ft³/h)
Min.: 0 m³/h (0 ft³/h)
Orifice diameter
0.25 in, 0.375 in
Temperature
Max.: 70 °C (158 °F)
Min.: -20 °C (-4 °F)
Description

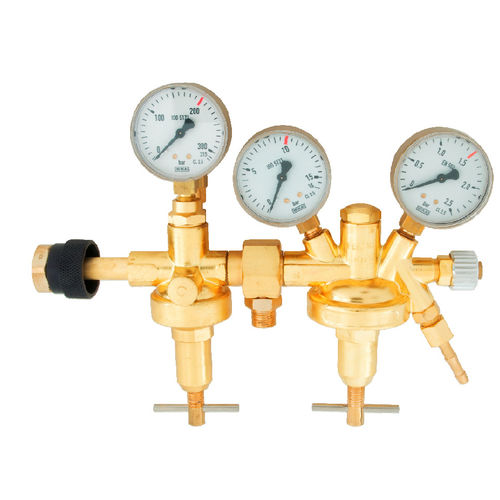

Cylinder pressure regulator in brass reduces the pressure of compressed gases as well as liquid gases with two separate adjustable outlets.
Everywhere (for reasons of cost and space) that different outlet pressures are simultaneously extracted from one cylinder. The pressure regulator can be supplied with an optional hand nut connection and in nickel plated brass.
