Gas pressure regulator HP 304for hydrogendiaphragmsingle-stage
Add to favorites
Compare this product
Characteristics
- Product
- for gas, for hydrogen
- Technology
- diaphragm
- Number of stages
- single-stage
- Output signal
- analog
- Material
- chrome-plated brass, stainless steel
- Applications
- industrial, for medical applications, for analytical instruments, high-purity, for chromatography, laboratory
- Other characteristics
- compact, with pressure gauge, line, miniature, high-purity, for low flow rates
- Pressure
Min.: 0 bar
(0 psi)Max.: 40 bar
(580.15 psi)- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 5.5 m³/h
(194.23 ft³/h)- Orifice diameter
0.25 in
- Temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description

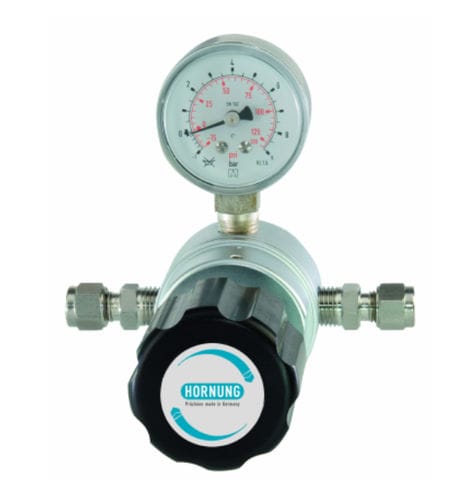

The line pressure regulator HP 304 is a single stage line pressure regulator, especially designer for high purity gases and fluids.
It can be equipped with an outlet pressure gauge optionally.
special characteristics:
The line pressure regulator HP 304 is characterized by its high regulating accuracy within an outlet pressure range of 0.1 up to 3 bar.
Especially for gases with high requirements on purity up to 6.0 and for laboratories and analytics.
Due to our special cleaning method the cylinder pressure regulator is ECD capable.
