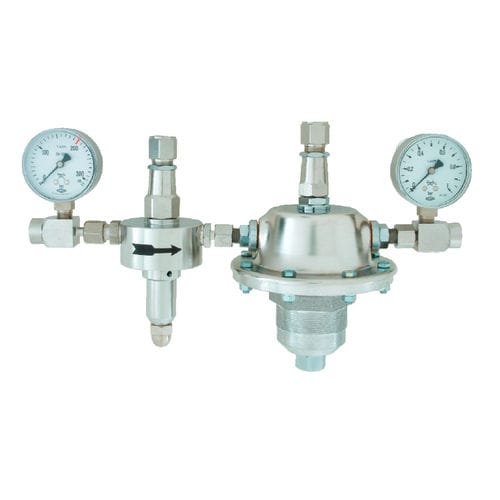

Propane pressure regulator VDS-PHRfor compressed airfor gasheated gas
Add to favorites
Compare this product
Characteristics
- Product
- for nitrogen, for compressed air, for gas, for inert gases, for oxygen, propane, for CO2, for hydrogen, for sour gas, for acetylene, for natural gas, for CNG, heated gas
- Technology
- diaphragm
- Number of stages
- two-stage
- Material
- chrome-plated brass, stainless steel
- Applications
- industrial, for medical applications, for analytical instruments, high-purity, for chromatography, laboratory
- Other characteristics
- with pressure gauge, high-precision, line, high-purity
- Pressure
Max.: 300 bar
(4,351.13 psi)Min.: 0 bar
(0 psi)- Flow
10 m³/h
(353.15 ft³/h)- Orifice diameter
0.25 in
- Temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
VDS PHR is a dual stage precision pressure regulator with a wide and flexible diaphragm surface for mbar operating pressures and is often used at science and research institutes or process engineering.
Due to dual stage construction it is possible to work with absolutely stable outlet pressure
even if there are high inlet pressures and even
if the inlet pressure drops down significantly.
For wall mounting of VDS PHR is as an option a bracket available.
• - mbar applications with high inlet pressures up to 300 bar
• - Gas purities up to 5.0 (99.999 Vol.%) purity
