for oxygen, for gas, for inert gases, for nitrogen, propane, for CO2, for hydrogen, for acetylene, for natural gas, for CNG, for sour gas, heated gas
Technology
diaphragm, plug
Number of stages
single-stage
Material
brass
Applications
industrial
Other characteristics
with pressure gauge
Pressure
Min.: 0 bar (0 psi)
Max.: 300 bar (4,351.13 psi)
Flow
Min.: 25 m³/h (882.87 ft³/h)
Max.: 340 m³/h (12,006.99 ft³/h)
Orifice diameter
0.75 in
Description

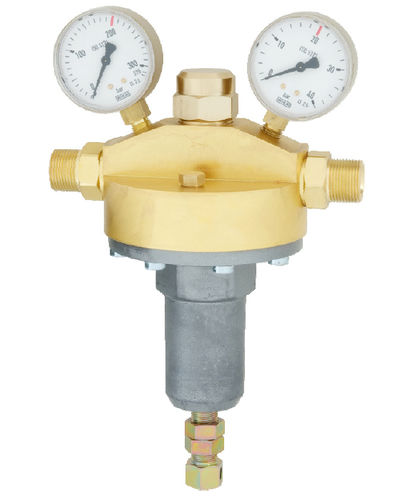

The pressure regulator ZD 400 reduces the max. inlet pressure of 300 bar down to a max. outlet pressure of 20 bar.
The ZD 400 is a single stage diaphragm controlled regulator with a balanced poppet.
A specifically constructed poppet version assures constancy in outlet pressure. BAM certified for Oxygen.
