Propane pressure regulator L 3/4for compressed airfor gasheated gas
Add to favorites
Compare this product
Characteristics
- Product
- for oxygen, for compressed air, for gas, for inert gases, for nitrogen, heated gas, propane, for CO2, for sour gas, for hydrogen, for acetylene, for natural gas, for CNG
- Technology
- spring, plug
- Number of stages
- single-stage
- Material
- brass, stainless steel
- Applications
- industrial, for medical applications
- Other characteristics
- with pressure gauge, line, for high flow rates
- Pressure
Min.: 0 bar
(0 psi)Max.: 110 bar
(1,595.42 psi)- Orifice diameter
0.25 in, 0.75 in
- Temperature
Min.: -40 °C
(-40 °F)Max.: 150 °C
(302 °F)
Description

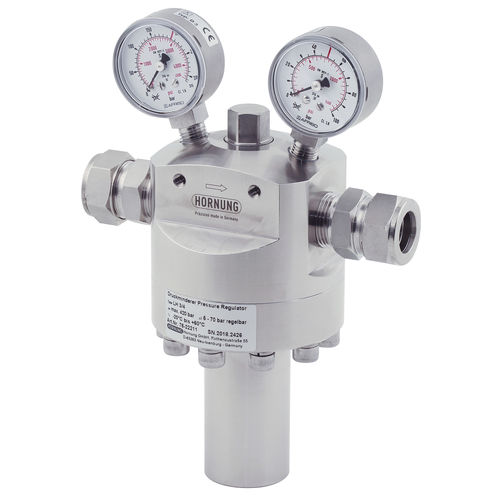

The line pressure regulator L 3/4 is characterised by an accurate regulation and a large throughput.
The spring loaded pressure regulator works according to the principle of the force equilibrium between the adjusted spring force and the outlet pressure.
It can be equipped optionally with an inlet and an outlet gauge.
Depending on applied materials, this pressure regulator is applicable for different gases and liquids.
We urgently recommend the connection of a fine filter with max. 40 μ at the inlet of the pressure regulator. Subsequent components and plant components must be protected by separate safety valves.
