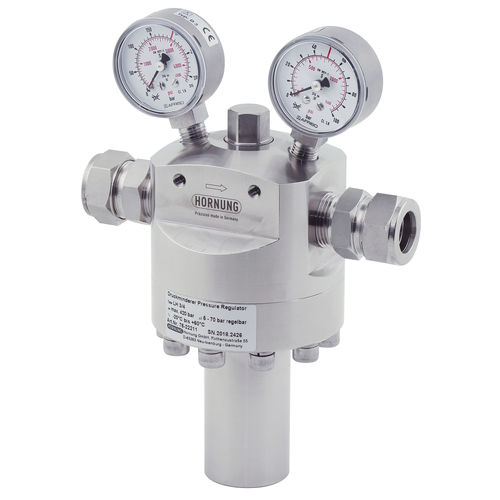

Propane pressure regulator LH 1/2for compressed airfor gasheated gas
Add to favorites
Compare this product
Characteristics
- Product
- for hydrogen, for compressed air, for gas, for inert gases, for oxygen, for nitrogen, propane, for CO2, for sour gas, heated gas, for acetylene, for natural gas, for CNG
- Technology
- spring, plug
- Number of stages
- single-stage
- Material
- brass, stainless steel
- Applications
- industrial, high-pressure
- Other characteristics
- with pressure gauge, line, for high flow rates
- Pressure
Max.: 420 bar
(6,091.58 psi)Min.: 0 bar
(0 psi)- Orifice diameter
0.25 in, 0.5 in
- Temperature
Max.: 150 °C
(302 °F)Min.: -40 °C
(-40 °F)
Description
The line pressure regulator LH 1/2 is chara-cterised by an accurate regulation and a large throughput.
The spring loaded pressure regulator works according to the principle of the force equili-brium between the adjusted spring force and the outlet pressure.
It can be equipped optionally with an inlet and an outlet gauge.
Depending on applied materials, this pressure regulator is applicable for different gases and liquids.
We urgently recommend the connection of a fine filter with max. 40 μ at the inlet of the pressure regulator. Subsequent components and plant components must be protected by separate safety valves.
