Rotor lump breaker K2 seriesdouble-rollerhorizontalfor powders
Add to favorites
Compare this product
Characteristics
- Technology
- rotor, double-roller
- Orientation
- horizontal
- Product applications
- for powders, food, waste
- Other characteristics
- automatic, stainless steel
- Machine width
365 mm
(14 in)- Machine weight
460 kg, 600 kg
(1,014 lb, 1,323 lb)
Description

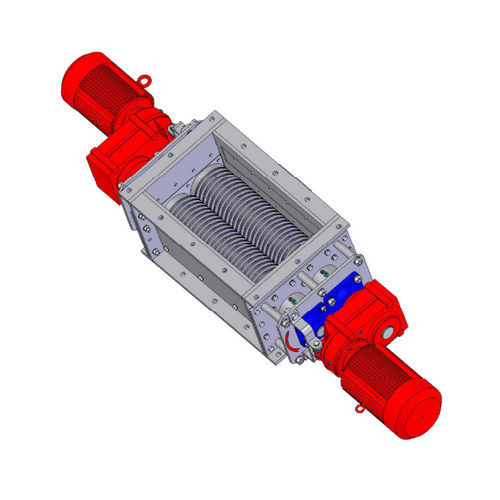

Two-shaft lump breaker with toothed plates, adjustable gap geometry, with scrapers or sieve.
• Low installation cost
• Less installation height
• Sturdy design
• Simple assembly
• Low noise
• Suitable for explosion-hazardous products
• permissible operating pressure: < 0,5 bar g
• product temperature max: 100° C
• min/max ambient temperature: -20°C ≤ T ≤ +50°C
2 crushing rotors with toothed discs, rotating in the opposite direction, rotating speed ratio
about 1:3 adapted to the task
• outside bearings on both sides
• shaft seal: radial shaft sealing rings
• inlet with flange, outlet with flange
• inspection cover at the side in the housing
