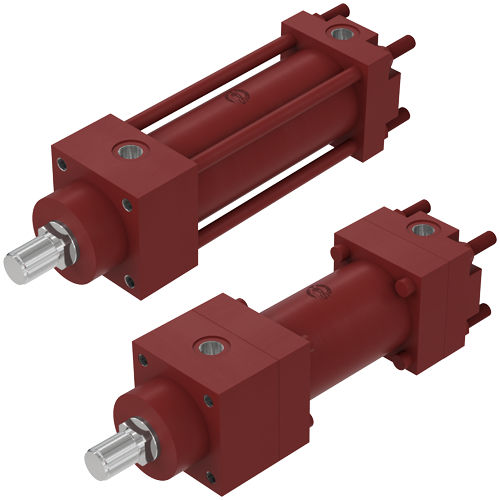

Tie-rod cylinder VT-VB serieshydraulicdouble-actingrobust
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- tie-rod
- Configuration
- double-acting
- Protection class
- robust
- Applications
- industrial
- Other characteristics
- flange
- Stroke
Max.: 4,500 mm
(177.165 in)Min.: 1 mm
(0.039 in)- Bore
Max.: 160 mm
(6.3 in)Min.: 32 mm
(1.26 in)- Pressure
160 bar, 210 bar
(2,320.6 psi, 3,045.79 psi)- Rod diameter
Max.: 110 mm
(4 in)Min.: 16 mm
(1 in)- Force
Max.: 40,120 daN
Min.: 540 daN
- Speed
Max.: 0.5 m/s
(1.64 ft/s)Min.: 0 m/s
(0 ft/s)- Operating Temperature
Max.: 240 °C
(464 °F)Min.: -20 °C
(-4 °F)
Description
Modular and robust tie rods flanges.
Fully configurable thanks to a multitude of mountings, feedings and options.
Working pressure: (VT) 160 bar / (VB) 210 bar
Bores: Ø32 ... 160 mm
