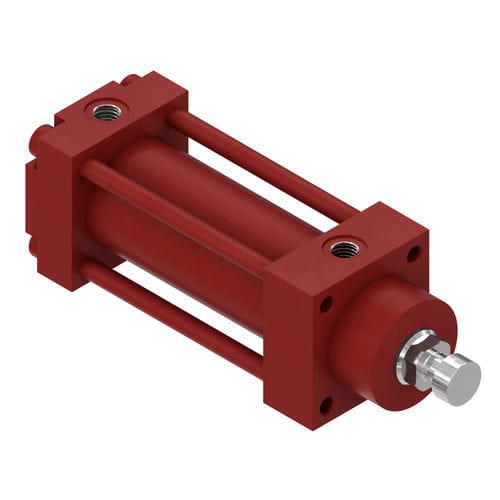

Tie-rod cylinder HVB serieshydraulicdouble-actingindustrial
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- tie-rod
- Configuration
- double-acting
- Applications
- industrial
- Other characteristics
- standard
- Stroke
Min.: 5 mm
(0.197 in)Max.: 160 mm
(6.299 in)- Bore
Min.: 25 mm
(0.98 in)Max.: 125 mm
(4.92 in)- Pressure
Min.: 90 bar
(1,305.34 psi)Max.: 200 bar
(2,900.75 psi)- Rod diameter
Min.: 16 mm
(1 in)Max.: 70 mm
(3 in)- Force
Min.: 261 daN
Max.: 24,543 daN
- Speed
Min.: 0 m/s
(0 ft/s)Max.: 0.5 m/s
(1.64 ft/s)- Operating Temperature
Min.: -20 °C
(-4 °F)Max.: 240 °C
(464 °F)
Description
Power supplies and possible fasteners on each side of the cylinder
Operating pressure 200 bar
Bore 25 to 125 mm
Seals Iso
Standard race
