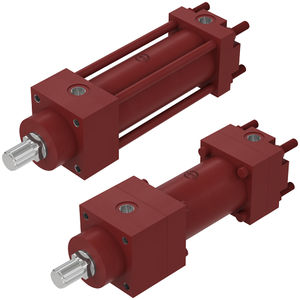

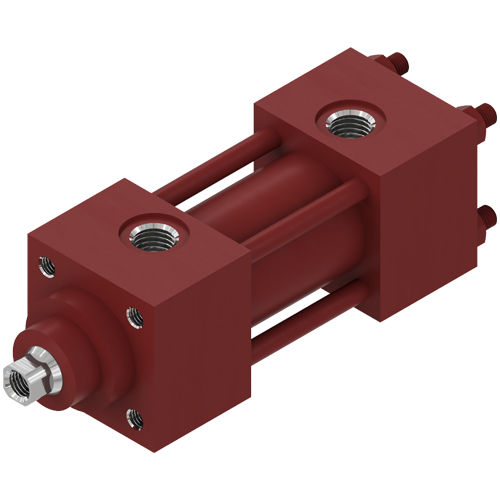

Tie-rod cylinder H160 Co serieshydraulicdouble-actingISO 6020
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- tie-rod
- Configuration
- double-acting
- Norms
- ISO 6020, ISO 6022, DIN 24554
- Applications
- industrial, for die-casting applications
- Stroke
Min.: 40 mm
(1.575 in)Max.: 1,250 mm
(49.213 in)- Bore
Min.: 25 mm
(0.98 in)Max.: 200 mm
(7.87 in)- Pressure
Min.: 30 bar
(435.11 psi)Max.: 160 bar
(2,320.6 psi)- Rod diameter
Min.: 12 mm
(0 in)Max.: 140 mm
(6 in)- Force
Min.: 113 daN
Max.: 50,265 daN
- Speed
Min.: 0 m/s
(0 ft/s)Max.: 0.5 m/s
(1.64 ft/s)- Operating Temperature
Min.: -20 °C
(-4 °F)Max.: 240 °C
(464 °F)
Description
Modular tie rod.
• Tie rods hydraulic cylinders fully configurable, in particular thanks to the multitude of mountings and options.
• Complies with ISO 6020/2 - DIN 24554 standard.
• Available with Magnetic, Inductive and Linear Sensors.
• All cylinders are tested in compliance with the ISO 10100 standard.
- Double acting
- Normes ISO 6020/2 - DIN 24554
- Working pressure: 160 bar
- Bores Ø25 ... 200 mm
VIDEO
