Fiber laser cutting machine GH series

for aluminumfor stainless steelfor brass

Overview

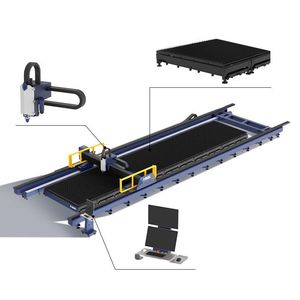

The HSG GH Series sheet fiber laser cutting machine is designed for high-power, high-volume metal fabrication. Configurable from 3 kW to 60 kW, the platform balances dynamic motion, high acceleration and stable cutting performance for demanding production workflows.

Key features

• Laser power configurable: 3000W–60000W to cover thin- and thick-sheet applications.
• High dynamic response: maximum acceleration up to 4G (model dependent) and linkage speeds up to 200 m/min.
• Advanced piercing: Lightning Piercing and multi-level piercing control to reduce dross and rework on thick materials.
• Precision motion system: premium drives, high-precision racks and guides for long-term positioning accuracy.
• Optional visual recognition: Sky-eye+ contour detection to enable multitask nesting and reduce manual setup time.
• Automation ready: integration support for HSG Store Pro and automated material handling systems.

Product variants

• G3015H — Laser Power: 3000W–30000W — Cutting Area: 3100 mm × 1550 mm — Max Accel: 4G — Max Linkage Speed: 200 m/min
• G4020H — Laser Power: 3000W–60000W — Cutting Area: 4100 mm × 2050 mm — Max Accel: 2.8G — Max Linkage Speed: 200 m/min
• G6025H — Laser Power: 6000W–60000W — Cutting Area: 6200 mm × 2550 mm — Max Accel: 2.8G — Max Linkage Speed: 200 m/min

Operation and integration

• Alpha T Plus control bus: touch interface with intuitive navigation and path optimization algorithms for reduced operator training time.
• Optional features: visual recognition, automated nesting, and connection to HSG Store Pro for line-level automation.
• Serviceability: modular components and industrial-grade peripherals to simplify maintenance.

Applications & materials

• Suitable for carbon steel, stainless steel, aluminum, brass and similar metals; cutting thickness depends on laser power and process parameters.
• Target use: high-volume fabrication, structural components, heavy plate processing and precision panel cutting.

Notes & technical specifications
Performance data and function descriptions are based on HSG in-house testing; actual results vary with configuration, material and operating conditions. See model block for representative specifications.
