Laser cutting machine GL series

for metalsheet metalcoil

Product overview

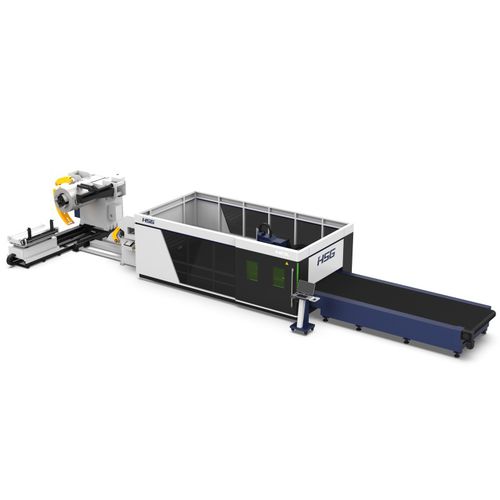

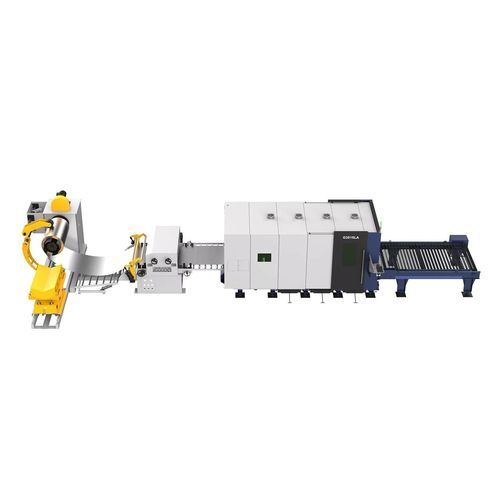

The GL series is a material coiling laser cutting machine that integrates uncoiling, feeding/loading, laser cutting and unloading into a continuous one‑stop processing line. It is designed to reduce the need for stamping molds, improve raw material utilization and support standardized container loading for transport.

Key features

• Integrated functions: uncoiling, automated loading, continuous laser cutting and automatic unloading.
• Eliminates or reduces stamping molds and associated storage costs.
• Dynamic FlashCut Drive System with up to 1.5G acceleration for improved cutting dynamics and productivity.
• Optional multi-head configurations: dual-head/dual-beam (synchronous or asynchronous), and available 3‑head and 4‑head setups to increase throughput.
• Ultra-intelligent nesting supporting ultra-long nesting and secondary nesting of remnants, increasing material utilization by approx. 5–15%.
• Reduced manual handling: coils loaded on a hydraulic loading cart by crane or forklift; automatic lifting by a single operator can raise loading efficiency up to ~50% vs manual methods.
• Optional multi-coil uncoiling module for rapid switching between materials and thicknesses to minimize downtime.

Technical parameters

• General power range displayed: 1500–6000W (series level).
• Model: G3015LA30 — Laser power: 3000W–6000W — Work area (L×W): 3000×1500 mm — X/Y positioning accuracy: ±0.03 mm/m.
• Model: G4015LA40 — Laser power: 3000W–6000W — Work area (L×W): 4000×1500 mm — X/Y positioning accuracy: ±0.03 mm/m.

Configurations and options

• Multi-head and multi-beam options (2–4 heads) supporting synchronous and asynchronous cutting modes.
• Optional dual-beam layouts and multi-coil uncoiling modules.
• Automated unloading options (gantry or robot) for part sorting.
• Standardized container-loading solution to optimize shipping and protect equipment during transport.

Handling and logistics

• Hydraulic loading cart compatible with crane or forklift for coil handling.
• Single-operator automatic lifting reduces manual interventions and accelerates loading cycles.
• Container-compatible loading reduces logistics costs and simplifies export shipping.

Applications and additional information
Designed for coil-to-part production of sheet metal components where continuous cutting, material optimization and minimal manual handling are required. Technical brochure available on request; configurations can be tailored to production volume and material specifications.
