2D laser cutting machine GFA series

for metalfor metal sheetschamfering

Overview

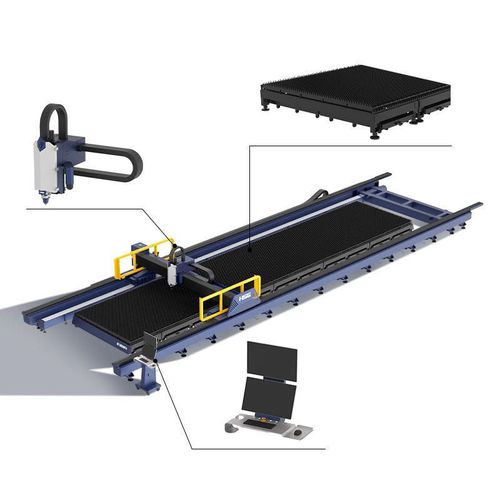

The GFA series is a large-format sheet laser cutting system with sectional, extendable beds and selectable power options (12000W–60000W). It is designed to process oversized sheets by configuring length and width to production requirements while maintaining positional accuracy and stable operation.

Flexible customization of length and width
The machine bed is composed of multiple modular sections. Length and width can be configured to create an extendable splicing bed that accommodates large-format sheets and simplifies handling and logistics.

Separate design of workbench and transmission mechanism
The worktable and transmission mechanism are separated to isolate the heat source from the drive system, reducing thermal impact during high-power cutting. This design supports stable operation under heavy loads, preserves accuracy and extends component life.

Efficient follow-up dust removal (Optional)
Zoned fixed cutting table with synchronized smoke extraction optimizes airflow and adsorption efficiency to minimize dust and fume dispersion during processing, protecting production quality and equipment.

0–45° bevel cutting (Optional)
Supports various bevel types (V, X, Y, etc.) to reduce downstream machining steps and improve assembly fit and welding preparation.

Independent inkjet marking system (Optional)
Provides fast part identification and process marking to confirm positions and assembly requirements, reducing installation errors and supporting industries with strict traceability needs (e.g., shipbuilding).

Technical parameters
Model: G13035FA — Power: 12000W–60000W — Processing format (L×W): 13000×3500 mm — X/Y-axis positioning accuracy: ±0.05 mm/m
Model: G26035FA — Power: 12000W–60000W — Processing format (L×W): 26000×3500 mm — X/Y-axis positioning accuracy: ±0.05 mm/m

Characteristics / technical specifications

• Series: GFA
• Power range: 12000W–60000W
• Processing formats: 13000×3500 mm, 26000×3500 mm (modular extendable bed supports custom sizes)
• X/Y-axis positioning accuracy: ±0.05 mm/m
• Machine bed: sectional splicing design for large-format sheets
• Workbench & transmission: separated design to reduce thermal impact and improve stability
• Optional features: zoned synchronized smoke/dust extraction, 0–45° bevel cutting (V/X/Y), independent inkjet marking system
• Product sheet available (PDF)
