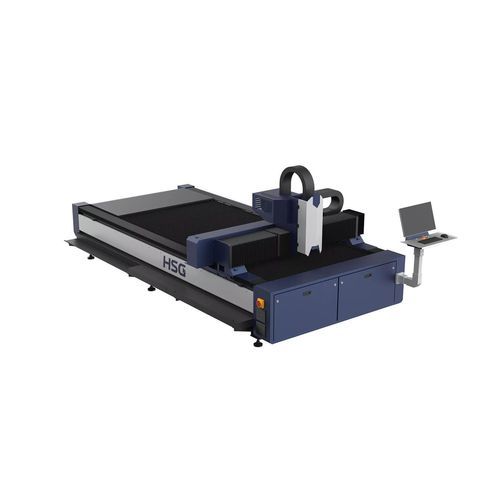

Fiber laser cutting machine C series

for metalsheet metalCNC

Overview
Single-platform C series fiber laser cutting machines for sheet metal processing, available in power configurations from 1,500 W to 60,000 W. Open-type single-platform design enables front/left/right loading and rapid commissioning. Suitable for serial production and large-format cutting with format options up to 13,100×3,100 mm.

Bus Control System

• Data transmission via EtherCAT bus for high-speed, stable communication
• User-friendly interface and comprehensive functions to support operators of varying experience
• Real-time monitoring of core components
• Millisecond-level follow-up response technology
• Processing report generation for traceability
• Compatibility with CNC codes of major international brands

Massive Production Database

• Invokable cutting-technology database covering different materials and thicknesses
• Includes thick-sheet processes such as air cutting, counterboring, perfect finish cut (PFC) and rapid piercing

Professional Nesting Software

• Optimizes cutting paths to reduce cutting time
• Smart nesting algorithm to improve material utilization

Small Size, Bulk Transport

• Open-type single-platform structure with multi-side loading for quick commissioning (typically one day)
• Compact transport-friendly dimensions; for example, up to four C3015 units can be shipped in one 40HQ container

Technical Parameters (excerpt)
Model | Power | Processing format (L×W) | X/Y-axis positioning accuracy
C3015 | 3000W–6000W | 3048×1524 mm | ±0.05 mm/m
C4020 | 1500W–6000W | 4064×2032 mm | ±0.05 mm/m
C6015 | 3000W–12000W | 6096×1524 mm | ±0.05 mm/m
C6025 | 3000W–20000W | 6096×2540 mm | ±0.05 mm/m
C8025 | 3000W–20000W | 8050×2540 mm | ±0.05 mm/m
C12025 | 12000W–60000W | 12500×2540 mm | ±0.05 mm/m
C13030 | 12000W–60000W | 13100×3100 mm | ±0.05 mm/m

Technical specifications

• Brand: HSG
• Series / Model: C
• Power range: 1,500 W – 60,000 W (model dependent)
• Processing formats (examples): 3048×1524 mm up to 13100×3100 mm depending on model
• X/Y-axis positioning accuracy: ±0.05 mm/m
• Control system: EtherCAT bus control system
• Key features: real-time component monitoring, millisecond-level response, processing report generation, compatibility with international brand codes
• Software: Professional nesting software for path optimization and improved material utilization
• Design: Open-type single-platform for quick loading and transport-friendly dimensions
