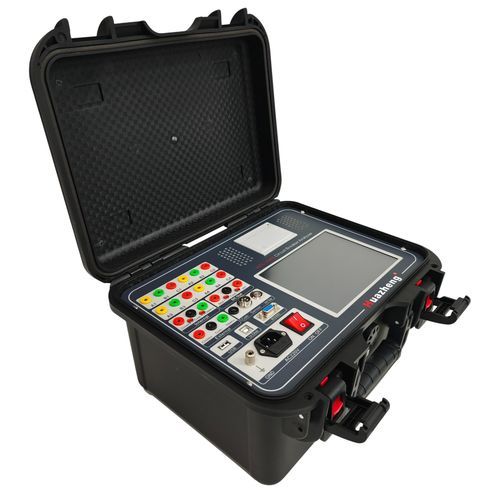

Circuit breaker testing device HZC-4080

currentautomaticindustrial

The circuit breaker analyzer (also known as the circuit breaker characteristic tester, high-voltage switch comprehensive tester, etc.) is a specialized instrument for detecting the mechanical dynamic characteristics of high-voltage circuit breakers. It assesses the performance and condition of the circuit breaker by measuring various parameters during the opening and closing processes, such as time, speed, and travel distance. The circuit breaker analyzer is a professional device for measuring and analyzing the mechanical and electrical characteristics of high-voltage circuit breakers. It is widely used in power systems, the electrical manufacturing industry, scientific research institutions, and other fields. Performance Characteristics 1. Function a.time：The inherent points and closing time of the 12 breaks are the same period and phase。 b.reclosing：Each break combined-point, split-close, split-close-split process time: one time, one time, two time, gold short time, no current time value. c.bounce：Jump time, bounce times, bounce process, bounce waveform; the rebound amplitude of each break. d.velocity：Just score, rigid speed, maximum speed, time-stroke characteristic curve. e.route or distance of travel：Total trip, open distance, over trip, over stroke, rebound amplitude. f.current：Division and closing current value and current waveform diagram of the split and closing coil. d.operation voltage：DC0~270V / 20A digital adjustable circuit breaker action power supply is provided in the machine to automatically complete the low voltage action test of the circuit breaker and measure the action voltage value of the circuit breaker.
