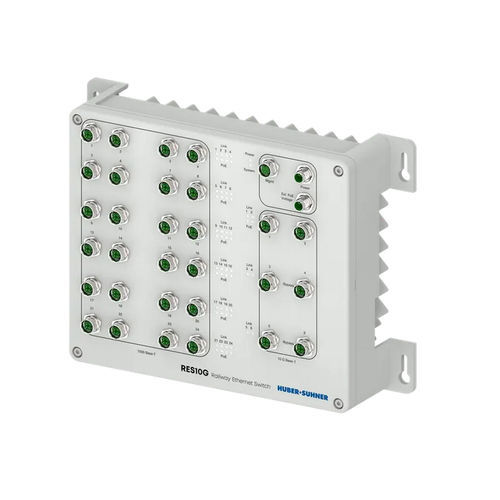

Managed ethernet switch RES10G-3006BB-26P

30 portslayer 2layer 3

Managed Ethernet switch for on-board train networks Designed for railway applications and compliant with EN 50155 and EN 45545-2 How to use it Connecting all on-board Ethernet based devices and applications Specifications Ethernet Interfaces Ethernet ports in total - 30 1000Base-T ports - 24 1000Base-T Connector - M12 X-coded, 8-pins (female) 10GBase-T ports - 6 10GBase-T Connector - M12 X-coded, 8-pins (female) 10GBase-SR ports - 0 10GBase-SR Connector - Q-ODC-2 (OM3) Bypass Functionality - 2x2x 10GBase-T Power over Ethernet ports in total - 26 Supported PoE standard - IEEE802.3bt Type 4 (4 pairs) Supported PoE class - 1 … 8, (up to 90W) Total PoE power budget - 120 W Layer 2 Feature Max. Switching Bandwidth - 84 Gbit/s Jumbo Frame Support - 10 kB MAC Address Table Size - 16000 VLAN - IEEE802.1q Port-based VLAN Amount of VLANs - 256 Multicast - IGMPv1 IGMPv2 IGMPv3 MLD Security Features Secure Firmware Update - Secure Fimware Update Remote Admin IP Filter - Only whitelisted IPs have access to management Access Control List (ACL) - Layer 2 Layer 3 Bandwidth limitation - Ingress-/Egress-Rate limiting Management Interface Network Interface - IPv4 Command Line Interface (CLI) - Console USB SSH Webinterface - HTTP HTTPS Network Management Protocol - SNMP NETCONF RESTCONF Logging - Syslog System LEDs - System Status Port LEDs - Link/Activity PoE Reset / USB / RS232 Interface - M12 A-coded,12 pins (female) Rest - Factory reset
