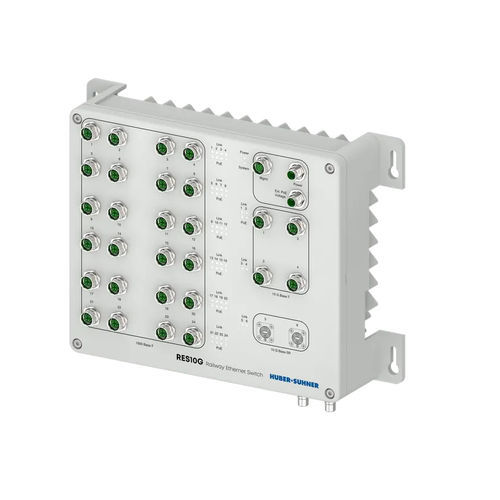

Managed ethernet switch RES10G-2804-2SR-26P

30 portslayer 2layer 3

Managed Ethernet switch for on-board train networks Designed for railway applications and compliant with EN 50155 and EN 45545-2 How to use it Connecting all on-board Ethernet based devices and applications Specifications Ethernet ports in total - 30 1000Base-T ports - 24 1000Base-T Connector - M12 X-coded, 8-pins (female) 10GBase-T ports - 4 10GBase-T Connector - M12 X-coded, 8-pins (female) 10GBase-SR ports - 2 10GBase-SR Connector - Q-ODC-2 (OM3) Power over Ethernet ports in total - 26 Supported PoE standard - IEEE802.3bt Type 4 (4 pairs) Layer 2 Feature Max. Switching Bandwidth - 84 Gbit/s Jumbo Frame Support - 10 kB MAC Address Table Size - 16000 VLAN - IEEE802.1q Port-based VLAN Amount of VLANs - 256 Multicast - IGMPv1 IGMPv2 IGMPv3 MLD Security Features Secure Firmware Update - Secure Fimware Update Remote Admin IP Filter - Only whitelisted IPs have access to management Bandwidth limitation - Ingress-/Egress-Rate limiting Management Interface Network Interface - IPv4 IPv6 Command Line Interface (CLI) - Console SSH Webinterface - HTTP HTTPS Network Management Protocol - SNMP NETCONF RESTCONF Logging - Syslog System LEDs - System Status Rest - Factory reset Housing Material - Aluminium, die-cast Dimensions (LxWxH) - 350mm x 250mm x 85mm Weight - < 6000 g Electrical Specification Power Supply Connector - M12 K-coded, 5 pins (male) Nominal Input Voltage Range - 24V DC ... 110V DC Max. Input Voltage Range - 16.8V DC ... 140V DC
