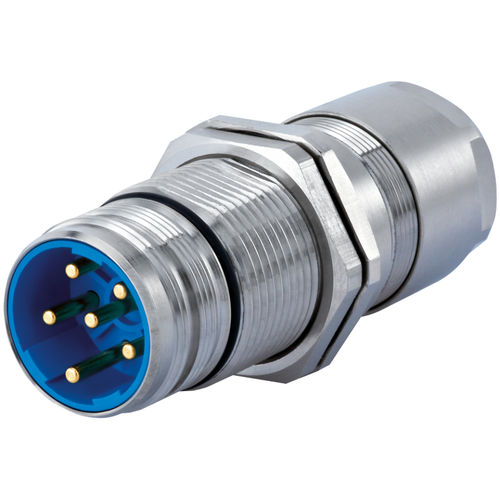

Cable diameter - 11 – 17 mm
Drill form - D 24,1 + 0,1,D Ø 25 + 0,1 mm
External thread (AG) - M25 x 1,5
External thread plug-in side - M23 x 1
Housing type - Panel
Installation type - Rear wall,Single hole mounting,Strain relief
Length (L) - 71.5 mm
Locking type - Screw connection,Snap in
Material housing - brass,Copper-Zinc alloy
Material housing surface - Nickel
Material seals/o-rings - NBR
Protection class - IP 67,IP 69 K
Seal type - O-Ring
Shield - shielded
suitable contact inserts -
7084909101,
7084909102,
7084910101,
7084910102,
7084943121,
7084943122,
7084944101,
7084944102,
7084951121,
7084951122,
7084953101,
7084953102
Temperature range - -40°C to +125°C
Wrench size (SW1/SW2/SW3) - 24/30/29 mm
Panel hole - Ø 25 + 0,1 mm
The housings of M23 Hybrid and M23 Power are identical due to our modularity.
Housing without contact inserts
Electrical data depend on the contact insert
7.639.XXX.XXX only pin insert possible
M23 Power Inserts
M23 Power Contacts
M23 Power Accessories
M23 Hybrid inserts
M23 Hybrid contacts
M23 Hybrid accessories
You can find further information in the Technology Center
