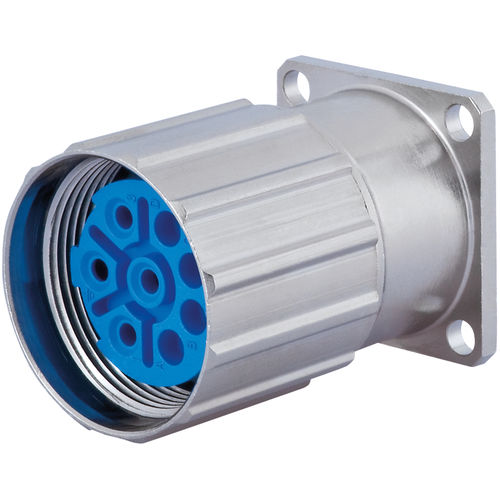

Data connector 7.645.000.000hybridflangeplug-in
Add to favorites
Compare this product
Characteristics
- Type
- data, hybrid
- Connection type
- flange, plug-in, screw, locking
- Size
- M23
- Material
- copper, zinc
- Product applications
- housing
- Protection class
- IP67, IP69K
Description
Flange - 25 x 25 mm
Hole diameter - 4 x Ø 2,7 mm
Hole distance - 19.8 mm
Housing type - Panel
Installation type - Flange,Front wall
Internal thread plug-in side - M23 x 1
Locking type - Screw connection
Material housing - Copper-Zinc alloy
Material housing surface - Nickel
Material seals/o-rings - NBR
Protection class - IP 67,IP 69 K
Shield - unshielded
suitable contact inserts -
7084909101,
7084909102,
7084910101,
7084910102,
7084943121,
7084943122,
7084944101,
7084944102,
7084951121,
7084951122,
7084953101,
7084953102
Temperature range - -40°C to +125°C
Panel hole - Ø 20 + 0,1 mm
The housings of M23 Hybrid and M23 Power are identical due to our modularity.
Housing without contact inserts
Electrical data depend on the contact insert
7.639.XXX.XXX only pin insert possible
M23 Power Inserts
M23 Power Contacts
M23 Power Accessories
M23 Hybrid inserts
M23 Hybrid contacts
M23 Hybrid accessories
You can find further information in the Technology Center
