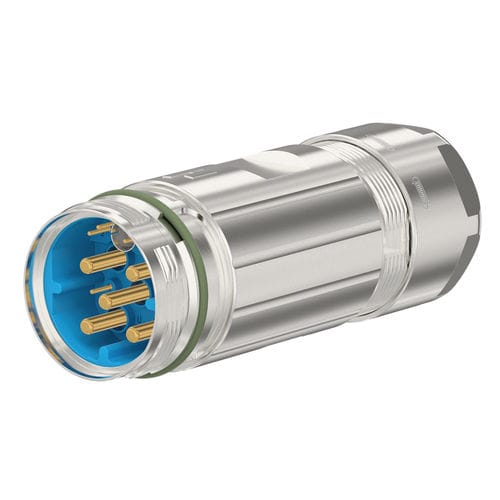

Data connector 7.720.662.00S

crimpM40insulation

Cable diameter - 13 – 18 mm Characteristic of connection - Crimp Color contact insert - blue Color Ethernet insert - white Contact-Ø data - 1 mm Contact-Ø power - 3.6 mm Contact-Ø signal - 1 mm Crimp range - 0.14 – 16 mm² Degree of Protection - 3 External thread plug-in side - M40 x 1,5 Flammability - V-0 (UL 94) Housing type - Coupler Insert - Pin Insulation resistance data - 10^8 Ω Insulation resistance power - 10^8 Ω Insulation resistance signal - 10^8 Ω Length (L) - 118 mm Material Ethernet insert - PA 6 Material housing - Zinc Die Cast Material housing surface - Nickel Material insulating body - PBT Material seals/o-rings - FKM (FPM),NBR max. contact resistance data - 0,003 mOhm max. contact resistance power - 1 mOhm max. contact resistance signal - 3 mOhm Nominal current data - 1,2 A Nominal current power - 55 A Nominal voltage at degree of pollution 3 data - 30 V~ Nominal voltage at degree of pollution 3 power - 600 V~ Nominal voltage at degree of pollution 3 signal - 150 V~ Nominal current signal - 7 A Number of contacts data - 2 Number of contacts PE - 1 Number of contacts power - 4 Number of contacts signal - 6 Number of poles - 13 Pole picture 2 + 6 + 4 + PE Protection class - IP 67,IP 69 K Seal type - O-Ring Shield - shielded Suitable data contacts - 7015961001 Suitable PE-/FE-contacts - 7015963601, 7015963611, 7015963621, 7015963631
