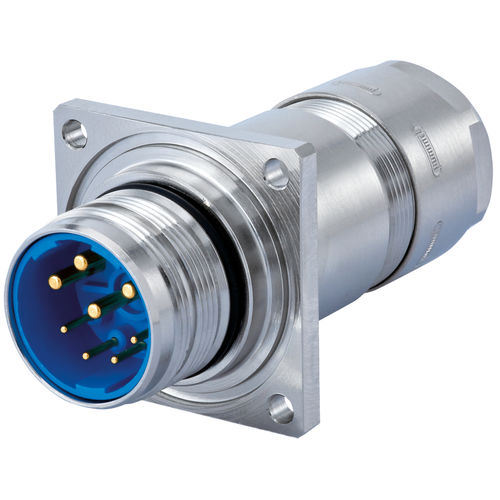

Hybrid connector 7.683.500.000DINcircularplug-in
Add to favorites
Compare this product
Characteristics
- Type
- hybrid
- Format
- DIN
- Shape
- circular
- Connection type
- plug-in, flange
- Size
- M23
- Material
- copper, zinc
- Product applications
- cable, external thread, housing
- Domain
- industrial
- Protection class
- IP67, IP69K
- Operating temperature
Max.: 125 °C
(257 °F)Min.: -40 °C
(-40 °F)
Description
M23 Hybrid Typ 1 panel connector
Material housing - Copper-Zinc alloy
Material housing surface - Nickel
Installation type - Front wall,Rear wall
External thread plug-in side - M23 x 1
Locking type - Screw
Shield - shielded
Material seals/o-rings - NBR
Panel hole - mind. Ø 26,5 + 0,2 mm
Flange - 35 x 35 mm
Hole distance - 28.4 mm
Hole diameter - 4 x Ø 3,2 mm
Wrench size (SW) - 24 mm
Cable diameter - 7 – 12 mm
