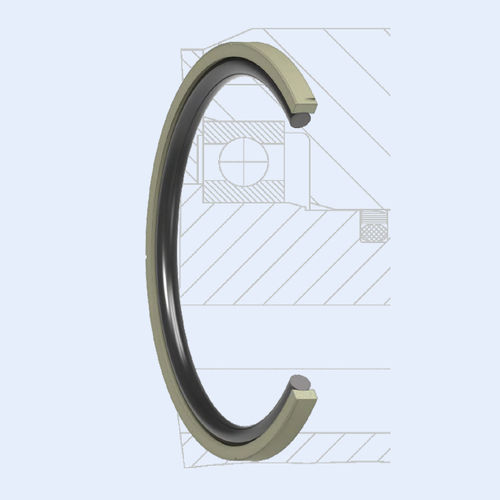

O-ring seal DS-A seriesNBREPDMFKM
Add to favorites
Compare this product
Characteristics
- Type
- O-ring
- Material
- NBR, EPDM, FKM
- Application
- profile, lubricant, slide, rotor
- Other characteristics
- static
- Temperature limit
Max.: 200 °C
(392 °F)Min.: -15 °C
(5 °F)- Pressure limit
360 bar
(5,221.4 psi)- Diameter
Max.: 210 mm
(8.268 in)Min.: 50 mm
(1.969 in)- Outer diameter
100 mm
(3.937 in)- Shore A hardness
40 unit
- Speed
2 m/s
(6.6 ft/s)
Description
The space-saving rotary seal type DS-A is designed
specifically for sealing rotating components.
From profile width 3.9 mm it has axial lubricant grooves
in the slide ring surface which guarantee sufficient
lubrication at higher speed.
The gap between rotor and stator must be smaller than
that of the RDA due to the seal design.
The DS-I is to be preferred to the DS-A due to its
greater static contact surface.
Depending on the specification and operating condition
it is recommended to have the running surface
hardened to approx. 56 HRC or hard chromium plated.
