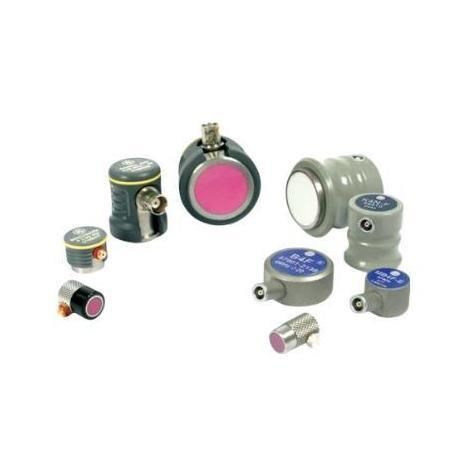

Plate ultrasonic transducer

beamcontactdirect-contact

Product Overview
The wear resistant straight beam contact transducer series is an ultrasonic NDT probe family for manual contact inspection of metal parts with simple geometry. It is designed as a front‑end ultrasonic component to be used with compatible flaw detection equipment and requires a suitable coupling medium for manual inspection.

Key Features

• Straight beam contact transducer architecture for ultrasonic NDT inspection.
• Permanent abrasion‑resistant wear plate for direct contact with metal surfaces.
• General‑purpose models for plates, forgings, billets, castings and bars.
• Smaller diameter options for pipes, tubes and confined areas.
• Fingertip (Type F) variants for access to tight spaces.
• Connector options: Lemo 00, Microdot, BNC, LEMO‑1 (model dependent).
• Side‑mount and top‑mount connector versions available depending on model family.
• Custom configurations and accessories available on request.

Applications
This transducer series is suitable for manual ultrasonic NDT of metallic components where direct contact probes are required. Typical inspection targets include plates, large forgings, billets, castings, pipes, tubes, tanks and bars. The series also supports lamination/delamination and bond testing, inspection of thick sections and testing of materials with low penetration. Fingertip models provide solutions for restricted access inspections.

Product Structure

• Wear resistant contact face: Permanent abrasion‑resistant wear plate for direct contact inspections.
• Contact inspection design: Handheld probe bodies intended for use with suitable couplant in manual setups.
• Fingertip option: Type F configurations for access to tight or recessed areas.
• Connector options: Lemo 00, Microdot, BNC, LEMO‑1 depending on model and cable choices.

Specifications (table)
Item — Specification
Product Type — Wear resistant straight beam contact transducer
Inspection Method — Contact ultrasonic inspection
Application Category — NDT and flaw detection
Contact Face — Permanent abrasion‑resistant wear plate
Model Families — K..G, K..N, K..K, G..N, G..KB, G..K, B..F, MB..F, RHP‑CR, RHP‑CS, Type F
Element Diameter Options — 5 mm, 6 mm, 10 mm, 13 mm, 19 mm, 20 mm, 24 mm, 25 mm (model dependent)
Frequency Options — 0.5 MHz, 1 MHz, 2 MHz, 2.25 MHz, 3.5 MHz, 4 MHz, 5 MHz, 10 MHz (model dependent)
Connector Options — Lemo 00, Microdot, BNC, LEMO‑1 (model dependent)
Accessories — Probe cables and connector cables (model dependent)
Custom Configuration — Available on request

Model Options (table)
Model Family — Frequency Options — Element Size — Connector / Accessory Notes
K..G / G..N — 1 MHz, 2 MHz, 4 MHz — 24 mm — Probe cable MPKL2
K..N / G..KB — 1 MHz, 2 MHz, 4 MHz, 5 MHz — 10 mm — Probe cable MPKL2
K..K / G..K — 5 MHz, 10 MHz — 5 mm — Microdot connector; probe cable MPKM2
B..F — 1 MHz, 2 MHz, 4 MHz, 5 MHz — 20 mm — Probe cable MPKL2
MB..F — 2 MHz, 4 MHz, 5 MHz, 10 MHz — 10 mm — Probe cable MPKL2
RHP‑CR / RHP‑CS — 0.5 MHz, 1.0 MHz, 2.25 MHz, 3.5 MHz, 5.0 MHz, 10.0 MHz — 13 mm, 19 mm, 25 mm — BNC or LEMO‑1 cable options
Type F — 2.25 MHz, 3.5 MHz, 5.0 MHz, 10.0 MHz — 6 mm, 10 mm, 13 mm — Fingertip body for tight access spaces

Integration Notes
Select the transducer based on inspection material, access constraints, required frequency, element diameter, connector type and probe body style. This probe series requires compatible ultrasonic flaw detectors and appropriate couplant for manual contact inspection.

Technical specifications

• Product Type: Wear resistant straight beam contact transducer
• Inspection Method: Contact ultrasonic inspection
• Application Category: NDT and flaw detection
• Contact Face: Permanent abrasion‑resistant wear plate
• Model Families: K..G, K..N, K..K, G..N, G..KB, G..K, B..F, MB..F, RHP‑CR, RHP‑CS, Type F
• Element Diameter Options: 5 mm; 6 mm; 10 mm; 13 mm; 19 mm; 20 mm; 24 mm; 25 mm (model dependent)
• Frequency Options: 0.5 MHz; 1 MHz; 2 MHz; 2.25 MHz; 3.5 MHz; 4 MHz; 5 MHz; 10 MHz (model dependent)
• Connector Options: Lemo 00; Microdot; BNC; LEMO‑1 (model dependent)
• Accessories: Probe cables (e.g., MPKL2, MPKM2) and connector cables available by model
• Fingertip (Type F) variants available for tight access spaces
• Custom configurations available on request
