- Rectangular anti-vibration mount
- Hutchinson Precision Sealing Systems
Rectangular anti-vibration mount Vibrachocmetallicstainless steelmetal cushion damper
Add to favorites
Compare this product
Characteristics
- Configuration
- rectangular
- Material
- metallic, stainless steel
- Other characteristics
- metal cushion damper, custom, vibration damper
- Static load
Max.: 70,000 N
Min.: 200 N
- Diameter
Max.: 203 mm
(7.992 in)Min.: 20.5 mm
(0.807 in)
Description
Description

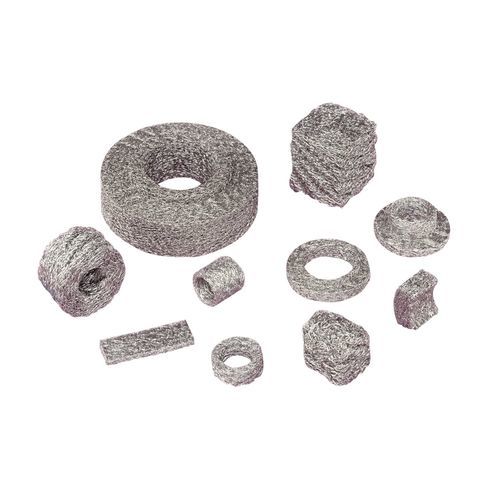

Rectangular metallic vibration and shock stop manufactured from drawn, woven stainless steel wire compressed into geometric cushions. Part of the Vibrachoc range, these metallic cushions are suitable for harsh industrial environments and are available in numerous standard sizes. Custom shapes and characteristics can be developed on request.
Key characteristics
Technical specifications
Rectangular metallic vibration and shock stop manufactured from drawn, woven stainless steel wire compressed into geometric cushions. Part of the Vibrachoc range, these metallic cushions are suitable for harsh industrial environments and are available in numerous standard sizes. Custom shapes and characteristics can be developed on request.
Key characteristics
- Configuration: rectangular
- Material: stainless steel wire / metal
- Other characteristics: metallic cushion / vibration damper, customisable
- Static load: Min.: 20 daN - Max.: 7000 daN
- Diameter: Min.: 20.5 mm (0.807 in) - Max.: 203 mm (7.992 in)
Technical specifications
- Series / Range: Vibrachoc range (metallic cushions)
- Configuration: rectangular
- Material: stainless steel wire / metal
- Customisation: custom shapes and characteristics available on request
- Temperature resistance: -70°C to +300°C
- Static load range: 20 daN to 7000 daN
- Diameter range: 20.5 mm (0.807 in) to 203 mm (7.992 in)
- Natural frequency: 12 to 25 Hz
- Damping: 15 to 20%
