Galvanised steel cable clamp Vibcable

aluminiumstainless steelsnap-on

Product overview

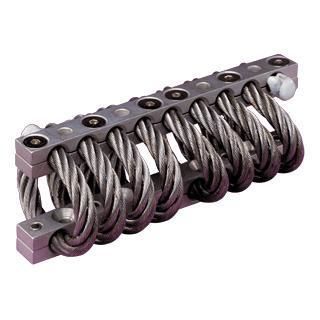

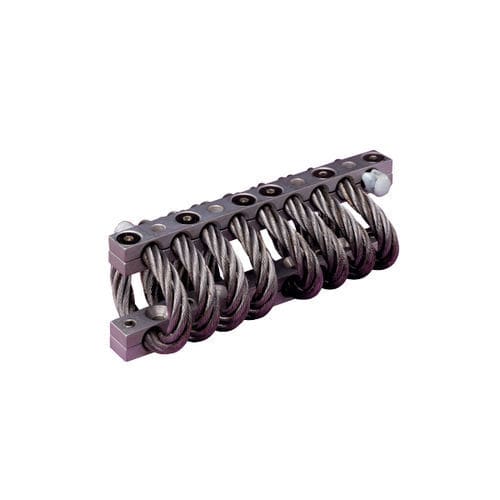

Multidirectional antivibration mount with metal cable construction designed to protect mobile equipment and fragile onboard material from shocks and drops.

Design and construction

• Stainless steel cable wound between light alloy bars.
• Versions 8010–8060 assembled with stainless steel clips; versions 8080–8140 use galvanised steel screws.
• Each bar offers two or four fixing holes; available smooth, countersunk or tapped.

Specifications

• Natural frequency range: 5–25 Hz.
• Damping: up to 40%.
• Large multiaxial deflection to absorb accelerations from shocks or falls.
• Protects containers, electrical bays and other fragile equipment.

IGS sheet and 3D

• V3CA8010-01XXXX
• V3CA8020-01XXXX
• V3CA8060-01XXXX
• V3CA8080-01XXXX
• V3CA8090-01XXXX
• V3CA8100-01XXXX
• V3CA8110-01XXXX
• V3CA8120-01XXXX
• V3CA8140-01XXXX
• V3CA8040-01

Applications

• Electrical enclosures and cabinets
• Containers and transport packaging
• Embedded and mobile equipment

Software and documentation
Paulstrasoft software can be used to select the optimal antivibration solution and access CAD/IGS files.

Characteristics / technical specifications

• Type: multidirectional metal antivibration mount with cable construction.
• Materials: stainless steel cable; light alloy bars; stainless steel clips or galvanised steel screws depending on version.
• Mounting: two or four holes per bar; options smooth, countersunk or tapped.
• Dynamic performance: natural frequency 5–25 Hz; damping up to 40%.
• Function: large multiaxial deflection for shock and drop protection; protects container contents, bays and fragile onboard materials.
