Round anti-vibration mount VIBSOL®

metalmetal wireelastomer

Description

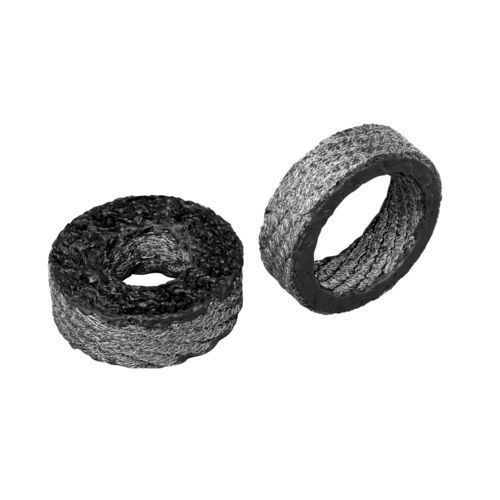

The VIBSOL® round anti-vibration mount is a metal cushion damper with a stainless steel wire core and anti-slip elastomer pads on both faces. Designed for simple installation under machine frames, it provides vibratory isolation for rotating and reciprocating machines. Two stiffness versions are available to match machine characteristics and operating frequencies.

Advantages

• Facilitates vibration isolation of rotating machines by easy placement under the frame
• Resistant to oils, temperature variations and fatigue, ensuring long service life in industrial environments
• Provides very good stability for suspended or frame-mounted equipment
• Wide usable load range with nearly constant natural frequency simplifies selection

Characteristics (from product specifications)

• Configuration: round
• Material: metal cushion with elastomer pads
• Applications: machine mounting (rotating machines, machine tools, metal forming equipment)
• Other characteristics: metal cushion damper with stainless steel wire core
• Static load: Max. 5,000 daN; Min. 50 daN
• Diameter values listed: 70 µm; 72 µm; 116 µm; 156,000 µm (also provided in inches: 2.756 in, 2.835 in, 4.567 in, 6.142 in); Max.: 156 µm; Min.: 72 µm

Technical characteristics / specifications

• Available versions: standard — natural frequency 22–30 Hz (typical for machine tools)
• W / thick version — lower stiffness, natural frequency 15–22 Hz (typical for metal forming machines)
• Static load range: 50 daN to 5,000 daN
• Construction: round metal cushion with elastomer pads on both sides and stainless steel wire reinforcement
• Typical applications: vibration isolation of rotating machines, presses, forming equipment and similar industrial machinery
