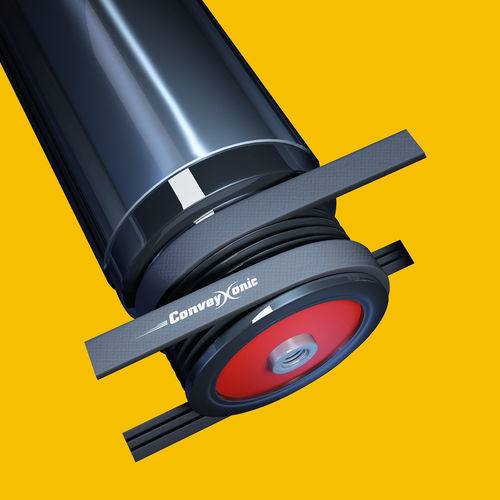

Flexible conveyor belt Conveyxonic®

canvasraised-ribheavy-duty

Overview
The Conveyxonic® is a power transmission elastic belt with longitudinal ribs, developed for roller and pallet conveyors. It transports parcels from 1 kg up to 2 tonnes and delivers technical performance and cost savings for conveyor systems.

Key features and benefits

• Cost savings: reduced motor electrical consumption and fewer motors required per module
• Technical performance: high transmission ratio and strong mechanical properties
• Customer confidence: proven solution across a wide range of loads and configurations

Applications and profiles
Two belt profiles cover a wide power and speed range: 55–550 W and 0.10–3 m/s.

• PJ (Light loads): for light-load roller conveyors; provides up to 4× transmission ratio vs round polyurethane belts
• PJ (Medium & Heavy loads): suitable to replace chain drives for medium and heavy loads
• PK (pallet conveyor): for very heavy loads up to 2 tonnes (example: 89 mm roller diameter and 80 mm ribbed pulley diameter)

Operational advantages
The Conveyxonic® belt reduces motor power consumption. A single motor can drive up to 50 rollers in light-load configurations (around 30% energy savings per module). For medium/heavy modules, one motor can drive up to 20 rollers depending on configuration.

Design & services
Hutchinson provides tools and services to define the correct Conveyxonic® belt for roller and pallet conveyors, including the Conveyxonic Wizard application and product leaflets. Hutchinson supports design parameters such as transfers, sorters, very light-load conveyors and special geometries.

Applications (examples)

• Roller conveyor — Light loads (0–400 kg)
• Roller conveyor — Medium loads (400–1,200 kg)
• Roller conveyor — Heavy loads (1–2 t)
• Inclines, curves, build-ups and other roller conveyor configurations

Technical characteristics / specifications

• Product name: Conveyxonic®
• Product type: Power transmission elastic belt with longitudinal ribs
• Load capacity: 1 kg to 2 tonnes (PK for very heavy loads)
• Power range covered by profiles: 55 W to 550 W
• Conveyor speed range: 0.10 m/s to 3 m/s
• Profiles available: PJ (Light loads), PJ (Medium & Heavy loads), PK (Pallet conveyor for very heavy loads)
• Example roller/pulley dimensions for very heavy loads: 89 mm roller diameter, 80 mm ribbed pulley diameter
• Transmission advantage: up to 4× ratio vs round polyurethane belts (light loads)
• Mechanical design: high mechanical properties enabling long motor-to-roller drive capability (examples: up to 50 rollers for light loads, up to 20 rollers for heavier modules)
• Stocking concept: single technology to stock; for light loads adjust number of ribs on belt while retaining same roller
• Replacement use case: can replace chain drive systems for medium/heavy and pallet conveyors
