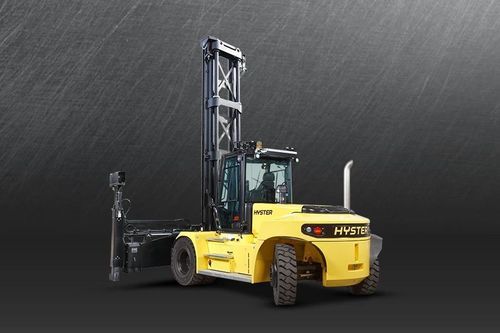

Forklift container handler H6XD-EC3

Overview
The Hyster H6XD-EC3 and H7XD-EC4 empty container handlers are built for stacking empty ISO containers three or four high, offering compact external dimensions and cost-efficient operation for ports, terminals and intermodal yards. Capacity range: 6000–7000 kg.

Key features

• Robust heavy-duty structure: reinforced frame, wide drive axle, Vista heavy-duty mast and side-lift spreader with movable vertical twistlocks
• Ergonomic high-visibility cab: armoured top window, curved front and rear glazing, steel doors with tempered glass, lateral sliding seat and full-colour performance display
• Performance optimisation: on-demand cooling, load-sensing hydraulics, RPM management and alternate idle speeds
• Simplified maintenance: unobstructed engine compartment access, 500-hour service intervals and shared components with the H13-16XD series

Spreader options

• Model 586TB — telescopic side-lift spreader with vertical twistlocks for single empty ISO and Binnencontainer up to 8'6" width
• Model 588TB — telescopic side-lift spreader with vertical twistlocks for single empty ISO containers

Cab and operator controls
Ergonomically arranged controls, adjustable steering column and pedals, lateral sliding seat and an intuitive full-colour screen provide clear access to performance data and machine status at the operator's fingertips.

Performance
On-demand cooling, load-sensing hydraulics and RPM management reduce fuel consumption across typical terminal applications while maintaining the required lifting performance.

Simplified service
Major components are readily accessible for faster inspections and servicing, reducing downtime. Commonality with H13-16XD components simplifies parts logistics.

Models and specifications (table)
Model | Load capacity | Load centre | Lift height | Turning radius | Overall width | Weight | Engine | Transmission
H6XD-EC3 | 6000 kg | 1220 mm | 6910 mm | 4637 mm | 2541 mm | 22160 kg | Mercedes‑Benz OM 934 Stage V | ZF / 3WG161
H7XD-EC4 | 7000 kg | 1220 mm | 9910 mm | 4637 mm | 2541 mm | 24590 kg | Mercedes‑Benz OM 934 Stage V | ZF / 3WG161
