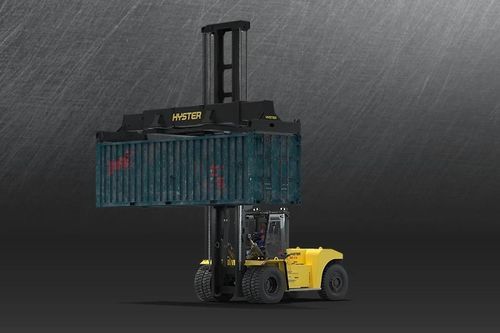

Forklift container handler H28XD-CH

Overview
Productivity and comfort in laden container handling. Solid and agile heavy-duty forklifts that deliver proven performance and low running costs.

Key features

• Energy efficiency
• Ergonomic cab
• Excellent visibility
• Easily serviceable
• Spreader performance

Energy efficiency
Intelligent CAN bus technology permits adjustment and optimisation of the truck’s performance and monitors key functions. Enables quick, easy diagnostics and minimises repair downtime.

Ergonomic cab
The high-visibility cab includes an armoured glass top window, curved front and rear windows, and steel doors with tempered glass. The cab provides a large entry area, a full-colour screen displaying performance data, a lateral sliding seat, adjustable steering column and foot pedal, and ergonomic controls for improved operator comfort and control.

Excellent visibility
Curved, scratch-resistant, tempered glass front and rear windshields, FOPS-certified armoured glass top window and one-piece steel-framed glass doors provide excellent all-around visibility.

Easily serviceable
Gull-wing hoods provide quick access to key components; daily checks don’t require tilting the cab. A tilting cab gives easy access to hydraulic components. Galvanised, broad, slip-resistant running boards enable quick daily checks. Large access bay allows easy radiator cleaning and a hydraulic sight gauge provides at-a-glance fluid level checks.

Spreader performance
Engineered for heavy-duty container handling applications, the series comes standard with an Elme 812 integral mounted spreader capable of handling both 20’ and 40’ ISO containers.

Models and Specifications (table)
Model | Load Capacity | Load Centre | Lift Height | Turning Radius | Overall Width | Weight | Engine | Transmission | Stacking Height 1st Row | Load Capacity 1st Row
H28XD-CH | 26400kg | 1220mm | 9755mm | 6185 mm | 3340mm | 51553 kg | MTU 7.7L Diesel | ZF - 5WG211 | 2 / 2 | 26400kg
H32XD-CH | 31000kg | 1220mm | 9755mm | 6848 mm | 3340mm | 51806 kg | MTU 7.7L Diesel | ZF - 5WG211 | 2 / 2 | 31000kg

Technical specifications

• Commercial designation: H28-32XD-16CH
• Models available: H28XD-CH, H32XD-CH
• Rated load capacity: 26,400 kg (H28XD-CH), 31,000 kg (H32XD-CH)
• Load centre: 1,220 mm
• Lift height: 9,755 mm
• Turning radius: 6,185 mm (H28XD-CH), 6,848 mm (H32XD-CH)
• Overall width: 3,340 mm
• Weight: 51,553 kg (H28XD-CH), 51,806 kg (H32XD-CH)
• Engine: MTU 7.7L Diesel
• Transmission: ZF - 5WG211
• Standard spreader: Elme 812 integral mounted spreader (20' & 40' ISO)
• Stacking height (1st row) and load capacity (1st row): specified per model in table above
