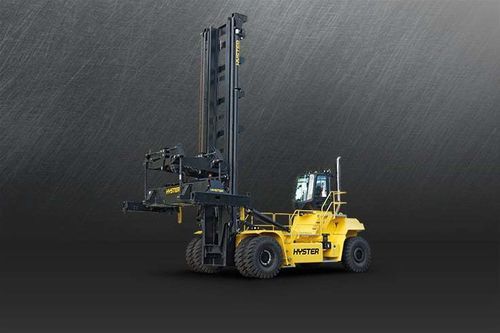

Container handler H40XM-16CH4

Overview
The Hyster® H40-52XM-16CH laden container handler is designed for rapid, cost‑efficient first‑row container handling with stacking configurations of 3–6 high depending on model. Available in selected territories; consult local Hyster® contacts for regional availability.

Key features

• Operator‑friendly high‑visibility cabin with sliding seat and colour display
• High‑performance powertrain with Cummins QSL 9L engine and extended service intervals
• Integrated spreader for 20' and 40' ISO and domestic containers
• Durable heavy‑duty axles, oil‑cooled brakes and reinforced driveline
• Easy access service points and removable top‑deck panels

Perform quick container moves from stacks to chassis
The Hyster® laden container handler executes fast, reliable container shunting in the first row and can replace reachstackers where second‑ and third‑row stacking is not required. Models offer fuel savings up to 20% in first‑row operations through optimized drivetrain and on‑demand cooling.

Operator‑friendly cabin
The ergonomically designed cabin provides panoramic visibility via an armoured glass roof window, curved front and rear glass and steel doors with tempered glazing. The cabin features the industry’s largest entry area, an intuitive colour display for performance data, lateral sliding seat, adjustable steering column and foot pedals plus ergonomically arranged controls to reduce operator fatigue.

High‑performance powertrain
Powertrain components and drivetrain are engineered for extended maintenance intervals (up to 500 hours). The Cummins QSL 9L engine with high‑pressure common‑rail injection and variable geometry turbochargers delivers high torque and efficient fuel consumption. An on‑demand cooling system with hydraulically driven fan reduces accessory loads when full cooling is not required.

Spreader performance
Standard integral‑mounted spreader handles both 20' and 40' ISO and domestic containers. Features include mechanical or powered pile sloping, power slewing, gantry spreader sideshift and automatic twistlock operation using four pendular twistlocks for secure, efficient engagement.

Durable components
The ECO‑eLo operating mode reduces energy consumption without compromising performance. Oil‑immersed brakes with oil cooling on the drive axle provide low maintenance and long life. Drive axles include reinforced spindles and heavy‑duty reductions; the wide steer axle uses a double‑acting steering cylinder and non‑adjustable tie rods for minimal upkeep.

Superior serviceability
Top‑deck removable aluminium plates with quick‑disconnect latches permit fast access to major powertrain, driveline and hydraulic components. Clearly positioned sight gauges simplify daily checks and support preventive maintenance to reduce downtime.

Technical specifications (selected models)

• Commercial designation: H40-52XM-16CH — capacity range 40000–52000 kg
• Example models: H40XM-16CH4 (35 300 kg), H52XM-16CH6 (36 000 kg), H44XM-16CH4 (39 300 kg), H52XM-16CH5 (40 000 kg)
• Engine: Cummins QSL 9L Diesel — Transmission: Dana S.O.H TE 27
• Load centre: 1400–1509 mm depending on model — Lift heights up to 17 830 mm
• Typical overall width: 4 200–4 900 mm — Weight range: ~62 419–82 443 kg
• Stacking 1st row: configurations 4/4, 5/5, 6/6 depending on model — Spreader: ISO 20'/40', mechanical/hydraulic slope, sideshift, automatic twistlocks
• Service intervals up to 500 hours, ECO‑eLo mode, removable top‑deck panels for maintenance access
