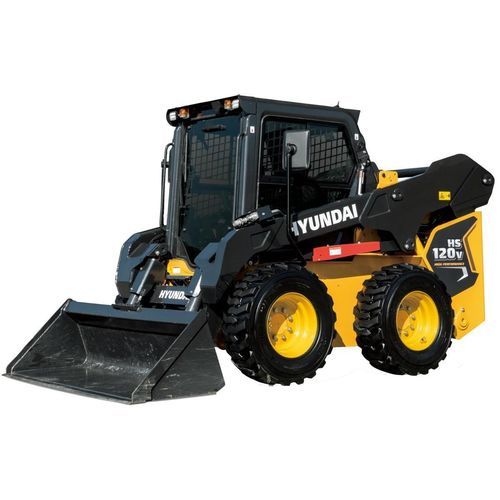

Diesel skid steer loader HS120V

Overview
Hyundai currently offers one skid steer loader, the HS120V, which performs in the large-sized frame class. Powerful and affordable, this machine is fully featured, built with the reliability and durability, performance, convenience, serviceability and safety features customers expect from Hyundai. It is powered by a Tier 4 Final-compliant Hyundai engine that delivers minimal emissions while providing excellent fuel efficiency. Skid steers are used across a variety of applications, each with their own unique challenges. Every Hyundai skid steer is backed by an industry-leading 3-year/3,000-hour warranty.

Reliability & Durability

• Reliability: Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEMs. The HS120V is designed to be rugged and reliable for longer up time, reduced operating cost and improved productivity.
• Durability: Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries. Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models ensuring optimum durability and reliability.

Key Specifications
ENGINE MODEL | Hyundai/4HTI4
NET POWER | 69.7 hp / 2,200 rpm
OPERATING WEIGHT | 8,481 lb.
OPERATING CAPACITY | 2,690 lb.
BUCKET BREAKOUT FORCE | 6,327 lb.
BOOM BREAKOUT FORCE | 4,354 lb.
BUCKET CAPACITY | 0.58 yd3
DUMP HEIGHT | 8' 1.4"
MAX HINGE PIN HEIGHT | 10' 6.6"
CONFIGURATION: LIFT PATH: (VERTICAL/RADIAL), UNDERCARRIAGE (TIRES, TRACKS) | VERTICAL, TIRES

Industries

• Snow Removal
• Concrete/Precast
• Agriculture
• Construction
• Landscaping

Caractéristiques / spécifications techniques

• Model: HS120V
• Engine Model: Hyundai/4HTI4
• Net Power: 69.7 hp @ 2,200 rpm / 52 kW @ 2,200 rpm
• Operating Weight: 8,481 lbs / 3,847 kg
• Rated Operating Capacity: 2,690 lbs / 1,220 kg
• Bucket Breakout Force: 6,327 lb
• Boom Breakout Force: 4,354 lb
• Bucket Capacity: 0.58 yd³
• Dump Height: 8' 1.4"
• Max Hinge Pin Height: 10' 6.6"
• Configuration: Vertical lift path, Tires undercarriage
• Tier 4 Final-compliant Hyundai engine
• Warranty: 3-year/3,000-hour
