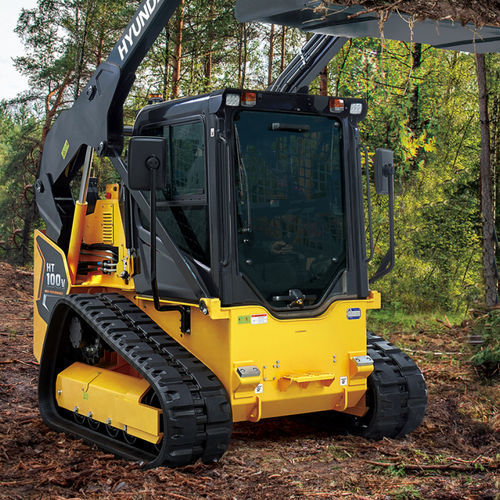

Diesel compact track loader HT100V

Overview
Hyundai currently offers one compact track loader, the HT100V. Powerful and affordable, this machine is fully featured, built with the reliability and durability, performance, convenience, serviceability and safety features customers expect from Hyundai. The HT100V is powered by a Tier 4 Final-compliant Hyundai engine that delivers minimal emissions while providing excellent fuel efficiency. Whatever your task, whatever the environment, you can rest easy knowing that your Hyundai CTL is backed by our industry-leading 3-year/3,000-hour warranty.

Reliability & Durability

• Reliability: The Hyundai HT100v compact track loader is built on the same sturdy platform as Hyundai skid steers, with extra enhancements to protect the undercarriage and ensure it withstands the stresses unique to a CTL. It has been put through rigorous testing to ensure long-term reliability and durability.
• Durability: Like other Hyundai products, the CTL is built with high-grade steel available to Hyundai because of its dominance in shipbuilding and other steel-intensive applications. Hyundai sources only proven components from globally trusted OEMs.

Key Specifications

• Net Power: 69.7 hp @ 2,400 rpm / 52 kW @ 2,400 rpm
• Operating Weight: 9,755 lbs / 4,425 kg
• Rated Operating Capacity: 2,300 lbs / 1,043 kg

Specifications Table
ENGINE MODEL | Hyundai / 4HTI4
NET POWER | 69.7 hp / 2,400 rpm
OPERATING WEIGHT | 9,755 lb.
OPERATING CAPACITY | 2,299 lb.
BUCKET BREAKOUT FORCE | 6,204 lb.
BOOM BREAKOUT FORCE | 4,766 lb.
BUCKET CAPACITY | 0.58 yd3
DUMP HEIGHT | 8' 1.2"
MAX HINGE PIN HEIGHT | 10' 6.4"
CONFIGURATION: LIFT PATH: (VERTICAL/RADIAL), UNDERCARRAIGE (TIRES, TRACKS) | VERTICAL, TRACKS

Industries

• Snow Removal
• Concrete/Precast
• Agriculture
• Construction
• Landscaping

Caractéristiques / Spécifications techniques

• Model: HT100V
• Brand: Hyundai
• Engine Model: Hyundai / 4HTI4
• Net Power: 69.7 hp @ 2,400 rpm
• Operating Weight: 9,755 lb (4,425 kg)
• Rated Operating Capacity: 2,299 lb (1,043 kg)
• Bucket Breakout Force: 6,204 lb
• Boom Breakout Force: 4,766 lb
• Bucket Capacity: 0.58 yd3
• Dump Height: 8' 1.2"
• Max Hinge Pin Height: 10' 6.4"
• Configuration: Vertical lift path, Tracks undercarriage
• Tier 4 Final-compliant Hyundai engine
• 3-year/3,000-hour warranty
