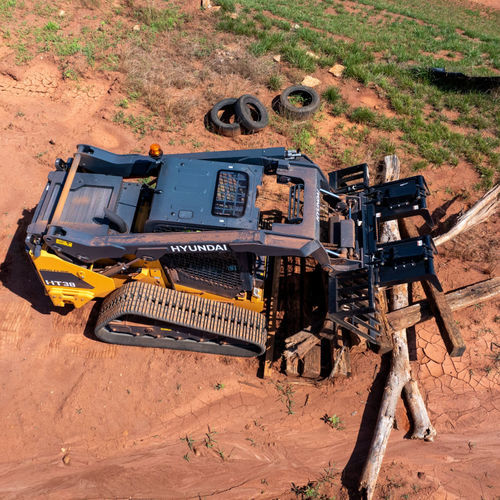

Diesel compact track loader HT38

Overview
Hyundai's new HT38 CTL provides an ideal combination of power and affordability, making it ideal for heavy-duty applications. The HT38 provides a 3,800 lb ROC and is built with durability, performance, comfort, and serviceability in mind, delivering the reliability and versatility our customers expect from the Hyundai brand. It's powered by a 115 hp turbocharged T4F Hyundai engine and features a modular cooling package with a variable speed, hydraulic driven reversible fan, ensuring long-lasting performance.

Reliability & Durability

• One of the most powerful machines in its class, the HT38V gives you more lifting capacity and pushing power.
• The HYUNDAI engine, which is also found in our dozers, is crucial for minimizing downtime, reducing maintenance costs and ensuring consistent performance in demanding work conditions.
• The new Hyundai HT38 compact track loader is engineered for long-term durability, featuring a torsion bar undercarriage for stability and high-grade steel components sourced from Hyundai’s shipbuilding expertise.
• It’s built to withstand rugged environments and heavy-duty applications, with proven reliability through rigorous testing.
• Backed by a 3-year/3,000-hour warranty, this loader offers peace of mind and consistent performance across demanding job sites.

Key Specifications
ENGINE MODEL: Hyundai D34
NET POWER: 102.6 hp / 2,400 rpm
OPERATING WEIGHT: 12,785 lb
OPERATING CAPACITY: 3,806 lb
BUCKET BREAKOUT FORCE: 6,649 lb
BOOM BREAKOUT FORCE: 6,761 lb
BUCKET CAPACITY: –
DUMP HEIGHT: 8' 7"
MAX HINGE PIN HEIGHT: 10' 1.75"
CONFIGURATION: LIFT PATH: (VERTICAL/RADIAL), UNDERCARRIAGE (TIRES, TRACKS): VERTICAL, TRACKS

Industries

• Snow Removal
• Concrete/Precast
• Agriculture
• Construction
• Landscaping

Caractéristiques / spécifications techniques

• Model: HT38
• Engine Model: Hyundai D34
• Net Power: 102.6 hp @ 2,400 rpm / 76.5 kW @ 2,400 rpm
• Operating Weight: 12,785 lbs / 5,799 kg
• Rated Operating Capacity: 3,806 lbs / 1,727 kg
• Bucket Breakout Force: 6,649 lb
• Boom Breakout Force: 6,761 lb
• Bucket Capacity: –
• Dump Height: 8' 7"
• Max Hinge Pin Height: 10' 1.75"
• Configuration: Vertical lift path, Tracks undercarriage
• Warranty: 3-year/3,000-hour
