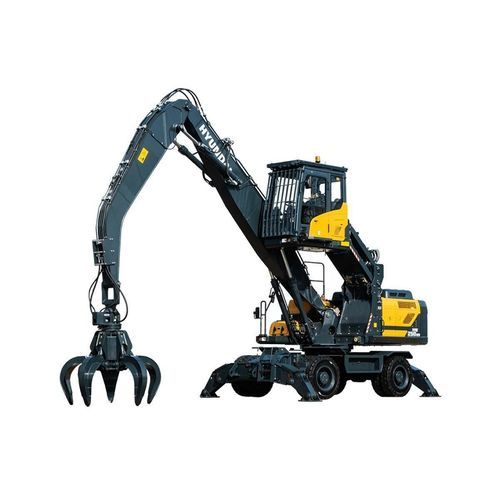

Mobile material handler HW250A MH

rubber-tired

Overview
The Hyundai wheeled excavator product line currently includes one HW series wheeled material handler model with straight boom, gooseneck arm, 4-outrigger and other great features to give you an edge in a wide range of on-road and off-road specialty applications. This Tier 4-Final-compliant wheeled material handler delivers improved performance, increased fuel efficiency, superior lifting capacity, an enhanced cab and added safety features.

Reliability & Durability

• Reliability: Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s. The HW250A MH is designed to be rugged and reliable for longer up time, reduced operating cost and improved productivity.
• Durability: Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries. Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.

Key Specifications

• NET POWER: 170 hp @ 2,200 rpm / 127 kW @ 2,200 rpm
• OPERATING WEIGHT: 58,422 lbs / 26,400 kg
• MAXIMUM TRAVEL SPEED: 21.7 mph / 35 km/h

Specifications Table
ENGINE MODEL: CUMMINS B6.7
NET POWER: 170 HP @ 2,000rpm
OPERATING WEIGHT: 58,422 lb.
Machine Type: MATERIAL HANDLER
BUCKET CAPACITY: N/A
SWING SPEED: 10.7 rpm
MAX TRAVEL SPEED: 21.7 mph
MAX. DIGGING DEPTH: 12' 9.5"
MAX. DIGGING REACH: 35' 1.3"
TAIL SWING RADIUS: 8' 11.6"
BUCKET BREAKOUT FORCE: N/A
ARM CROWD FORCE: N/A
CONFIGURATION: COMPACT, CRAWLER, WHEELED, SPECIALITY: SPECIALTY

Caractéristiques / Spécifications techniques

• Model: HW250A MH
• Brand: Hyundai
• Engine Model: CUMMINS B6.7
• Net Power: 170 HP @ 2,000rpm
• Operating Weight: 58,422 lb. (26,400 kg)
• Machine Type: Material Handler
• Bucket Capacity: N/A
• Swing Speed: 10.7 rpm
• Max Travel Speed: 21.7 mph (35 km/h)
• Max. Digging Depth: 12' 9.5"
• Max. Digging Reach: 35' 1.3"
• Tail Swing Radius: 8' 11.6"
• Bucket Breakout Force: N/A
• Arm Crowd Force: N/A
• Configuration: Specialty
