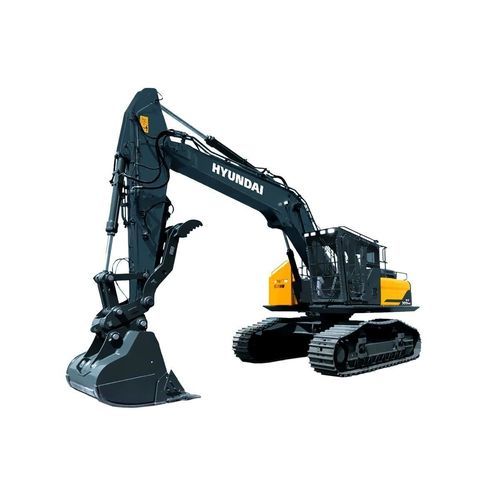

Large excavator HX300RB

crawlerconstruction

Overview
When you buy a road builder from Hyundai, you get more than a great machine that is purpose-built for pioneering and road building in timber country. You also get the built-in Hyundai DNA, including ease of maintenance and serviceability, productivity and performance, comfort, and safety – features that help you get more done.

Reliability & Durability

• Reliability: Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s. The HX300RB is designed to be rugged and reliable for longer up time, reduced operating cost and improved productivity.
• Durability: Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries. Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.

Key Specifications
ENGINE MODEL: DOOSAN DL08P
NET POWER: 266.7 hp @ 1,800 rpm
OPERATING WEIGHT: 81,370 lb.
Machine Type: ROAD BUILDER
BUCKET CAPACITY: 2.09 yd³
SWING SPEED: 9.7 rpm
MAX TRAVEL SPEED: 2.6 mph
MAX. DIGGING DEPTH: 19' 6.3"
MAX. DIGGING REACH: 35' 0.1"
TAIL SWING RADIUS: 10' 7.4"
BUCKET BREAKOUT FORCE: 42,108 lb.
ARM CROWD FORCE: 31,085 lb.
CONFIGURATION: SPECIALTY

Industries

• Construction
• Lumber-Millyard

Caractéristiques / Spécifications techniques

• Model: HX300RB
• Engine Model: DOOSAN DL08P
• Net Power: 266.7 hp @ 1,800 rpm
• Operating Weight: 81,370 lb.
• Machine Type: Road Builder
• Bucket Capacity: 2.09 yd³
• Swing Speed: 9.7 rpm
• Max Travel Speed: 2.6 mph
• Max. Digging Depth: 19' 6.3"
• Max. Digging Reach: 35' 0.1"
• Tail Swing Radius: 10' 7.4"
• Bucket Breakout Force: 42,108 lb.
• Arm Crowd Force: 31,085 lb.
• Configuration: Specialty
