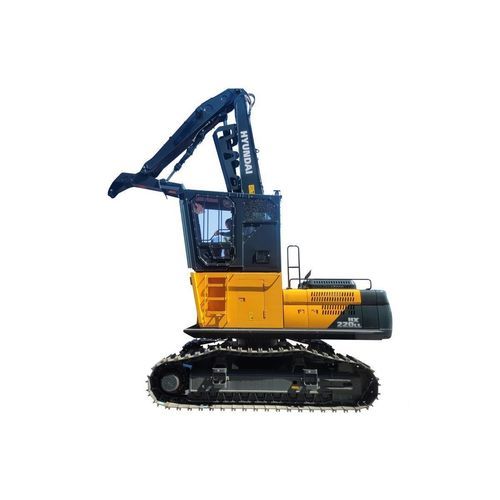

Portable log loader HX220LL

crawler

Overview
When you buy a log loader from Hyundai, you get more than a great machine that is purpose-built for forestry work. You also get the built-in Hyundai DNA, including ease of maintenance and serviceability, productivity and performance, comfort, and safety – features that help you move more timber, faster.

Reliability & Durability

• Reliability: Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s. The HX220LL is designed to be rugged and reliable for longer up time, reduced operating cost and improved productivity.
• Durability: Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries. Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.

Key Performance Data

• Net Power: 163 hp @ 1,800 rpm / 121.4 kW @ 1,800 rpm
• Operating Weight: 68,784 lbs / 31,200 kg
• Maximum Travel Speed: 2.6 mph / 4.2 km/h

Specifications
ENGINE MODEL | DOOSAN DL06P
NET POWER | 167 hp @ 1,800 rpm
OPERATING WEIGHT | 68,784 lb.
Machine Type | LOG LOADER
BUCKET CAPACITY | N/A
SWING SPEED | 11.7 rpm
MAX TRAVEL SPEED | 2.6 mph
MAX. DIGGING DEPTH | 11' 3.6"
MAX. DIGGING REACH | 36' 0.9"
TAIL SWING RADIUS | 10' 2.6"
BUCKET BREAKOUT FORCE | N/A
ARM CROWD FORCE | N/A
CONFIGURATION: COMPACT, CRAWLER, WHEELED, SPECIALITY | SPECIALTY

Industries

• Forestry
• Lumber-Millyard

Caractéristiques / spécifications techniques

• Model: HX220LL
• Brand: Hyundai
• Engine Model: DOOSAN DL06P
• Net Power: 167 hp @ 1,800 rpm
• Operating Weight: 68,784 lb. (31,200 kg)
• Machine Type: Log Loader
• Bucket Capacity: N/A
• Swing Speed: 11.7 rpm
• Max Travel Speed: 2.6 mph (4.2 km/h)
• Max. Digging Depth: 11' 3.6"
• Max. Digging Reach: 36' 0.9"
• Tail Swing Radius: 10' 2.6"
• Bucket Breakout Force: N/A
• Arm Crowd Force: N/A
• Configuration: Specialty
