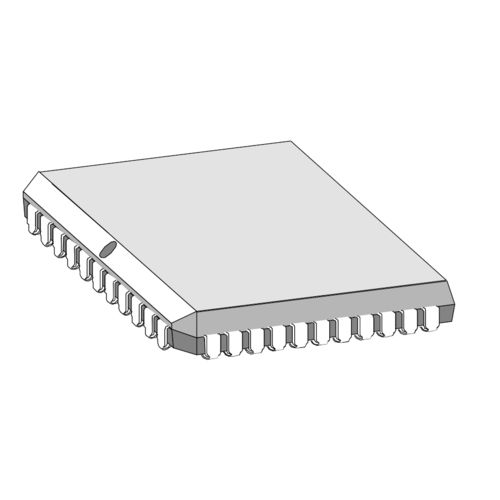

Interface ASIC iC-JRX

for sensors

Applications Dual quad high-side driver as a bidirectional µP interface with digital filtering for industrial 24 V applications Features 2 × 4 bidirectional 24 V input/output stages I/O mode programmable in 4-bit blocks Guaranteed high-side driving capability of 100 mAdc and 500 mApeak for pulse load Short-circuit-proof drivers with high dielectric strength Low saturation voltage of 0.6 V/100 mA and 2.0 V/500 mA Integrated flyback circuits Programmable PWM function Flash mode for the outputs Digital input filters with filtering times externally adjustable Supply voltage and two-stage temperature monitoring
