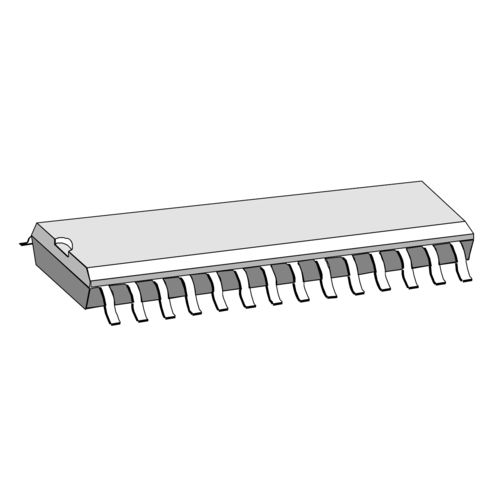

Microcontroller iC-NG

Applications Absolute and incremental angle interpolation from orthogonal sinusoidal input signals Interpolating interface for MR sensors and optical analog encoders Features Real-time interpolator with programmable resolution of up to 256 steps/period Calibration features permit adaption of disorted sine/cosine signals Incremental A QUAD B or absolute outputs, output frequency Fast 24-bit multiturn counting on chip Programmable index position Input amplifiers lead out completely 8-bit µP interface Serial EEPROM port to load setup Built-in clock oscillator Interrupt controller and error monitoring TTL-/CMOS-compatible outputs
