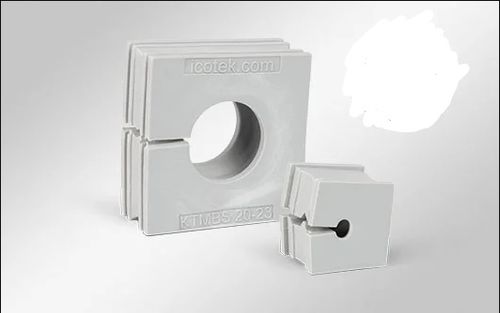

Elastomer cable grommet KTMBS series

siliconemembraneIP54

Cable grommets KTMBS grey are used to route pre-terminated cables with the following cable entry components: KEL cable entry frames KVT split cable glands The innovative membrane enables the routing of cables with diameters that can vary up to 3 mm. Utilising the KTMBS, cables with cable diameters from 4 to 29 mm can be routed. The innovative wave cut and the flexible sealing lips make it possible to seal the cable with IP54 / UL Type 12. ST-B Plugs can be used for sealing the grommets if cables have been removed. Specifications IP rating (EN 60529) - IP54 UL Type (UL 50E) - UL Type 12 Flame class - UL94-V0, self-extinguishing Operating temperature - -40 C° to 100 C° Material - Elastomer Properties - silicone free, halogen free Advantages & benefits Routing of cables with and without connectors Only 12 grommets cover a clamping range from 4 to 29 mm Innovative wave cut for a better sealing Innovative membrane for high flexibility
