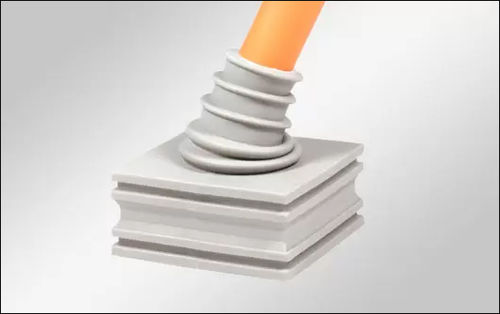

Elastomer cable grommet KT-DPF

siliconestrain relief

grommets accept a wide range of cable diameters. A great benefit when the exact cable diameter is not known in advance. Due to the flexibility and unique pyramid shape, routing and flexible positioning of rigid cables is much easier compared to using conventional cable glands. The KT-DPF grommets are not split and therefore only usable for cables without connectors. It is recommended that additional strain relief be provided for the cables using a cable tie. Cutting of KT-DPF grommets: Cable diameter less 20%. Specifications IP rating (EN 60529) - IP54 UL Type (UL 50E) - UL Type 12 Flame class - UL94-V0, self-extinguishing Operating temperature - -40 C° to 100 C° Material - Elastomer Properties - silicone free, halogen free Advantages & benefits Large clamping range of 3 to 26 mm with only 3 grommets Ideal for wiring non pre-terminated cables locally Easy storage
